LED Autolamps·
235R12
Stop/Tail Strip Lamp 12V 235x22x16.5mm Cut Out 200x12mm
Stop/Tail Strip Lamp 12V 235x22x16.5mm Cut Out 200x12mm
Quantity
Regular price
$57.99 AUD
Regular price
Sale price
$57.99 AUD
Couldn't load pickup availability
Pins are saved on this device only. Clearing browser history removes them.
View full details
Overview

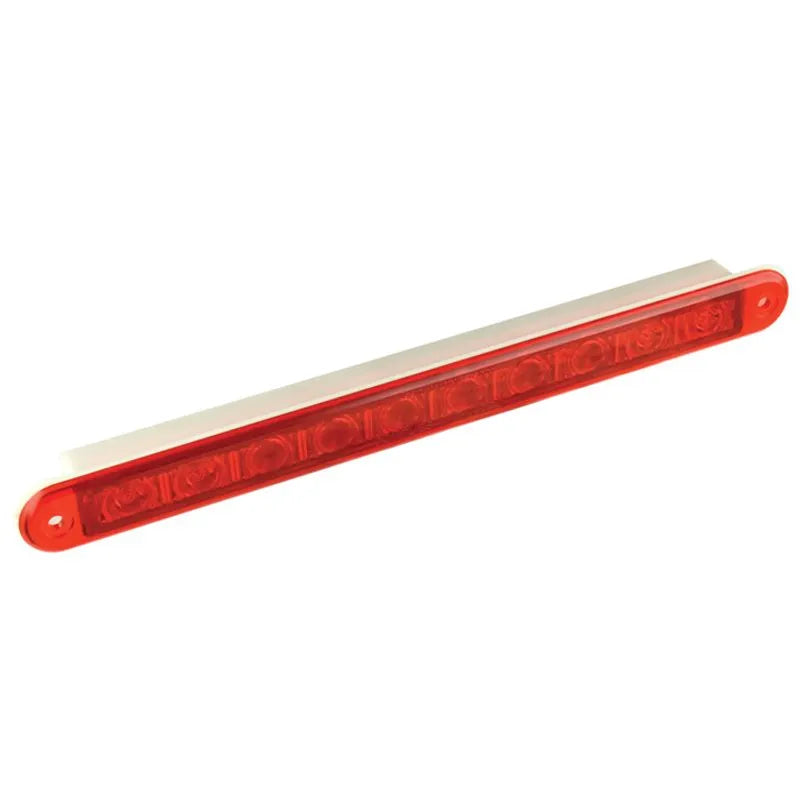

LED Autolamps Stop/Tail lamp. 12V input. 237mm x 25mm x 3mm IP67 rated.
Specifications
Voltage: 12V
Function: Stop/Tail
Dimensions: 237mm x 25mm x 3mm
LEDs: 10
Ingress protection: IP67
Cable: 40cm cable
Current draw @ 13.8V: 0.14A / 0.04A
Current draw @ 28V: 0.13A / 0.05A
Supplied as: Single
Function: Stop/Tail
Dimensions: 237mm x 25mm x 3mm
LEDs: 10
Ingress protection: IP67
Cable: 40cm cable
Current draw @ 13.8V: 0.14A / 0.04A
Current draw @ 28V: 0.13A / 0.05A
Supplied as: Single
Features
- Low profile design — minimal protrusion from mounting surface
Fitment / Notes
- Mounting: Recessed - Mount onto a flat surface (Amber/Red, horizontally or Vertically, White Horizontally only). Push lamp and grommet into cutout (cut out 203mm x 19mm) in the mounting surface, run wires through back and fix with screws (Max Torque - 8kgf/cm). Products can also be mounted using surface mounting brackets sold separately. Please refer to ADR 13/00 for mounting instructions.
Warranty
5 Years
