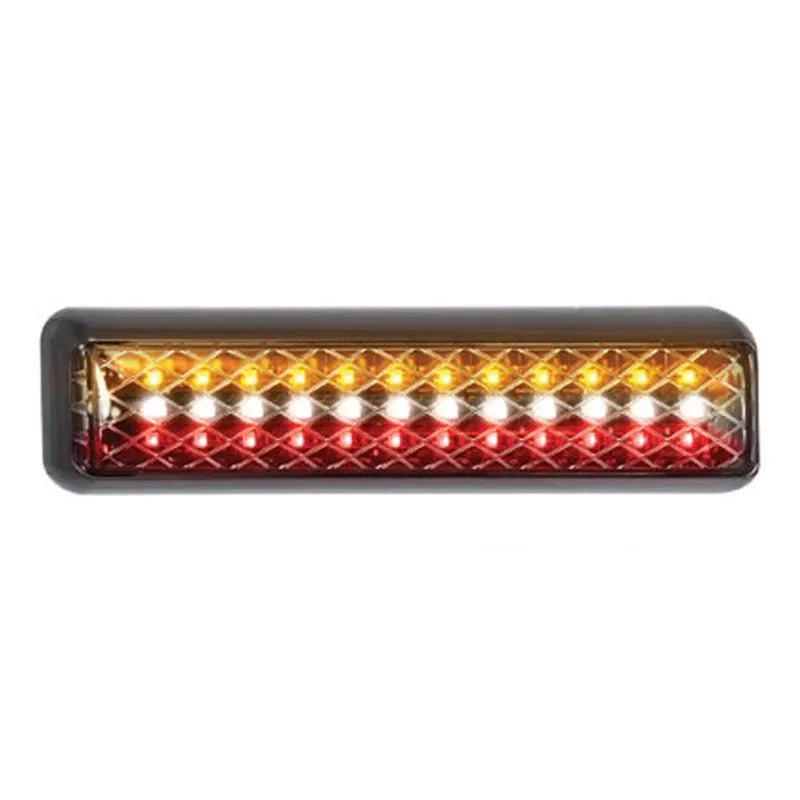

Pair of LED Combination Lamp 12-24V Stop/Tail/Indicator/Reverse 200x50x28mm
Pair of LED Combination Lamp 12-24V Stop/Tail/Indicator/Reverse 200x50x28mm
Quantity
Regular price
$266.89 AUD
Regular price
Sale price
$266.89 AUD
Couldn't load pickup availability
Pins are saved on this device only. Clearing browser history removes them.
View full details
Overview
LED Autolamps Stop/Tail/Indicator/Reverse lamp. input. 200mm x 50mm x 28mm IP67 rated. Supplied as pair.
Specifications
Function: Stop/Tail/Indicator/Reverse
Dimensions: 200mm x 50mm x 28mm
LEDs: 36
Ingress protection: IP67
Cable: 40cm
Current draw @ 13.8V: 0.29A / 0.09A / 0.19A / 0.08A
Current draw @ 28V: 0.16A / 0.07A / 0.07A / 0.02A
Supplied as: Pair
Dimensions: 200mm x 50mm x 28mm
LEDs: 36
Ingress protection: IP67
Cable: 40cm
Current draw @ 13.8V: 0.29A / 0.09A / 0.19A / 0.08A
Current draw @ 28V: 0.16A / 0.07A / 0.07A / 0.02A
Supplied as: Pair
Features
- Clip-in replaceable lens — damaged lens can be swapped without replacing the full lamp unit
Fitment / Notes
- Mounting: Horizontally, Surface mount bracket, run wires through back and clip lens into place. Please refer to ADR 13/00 for mounting instructions.
