Overview

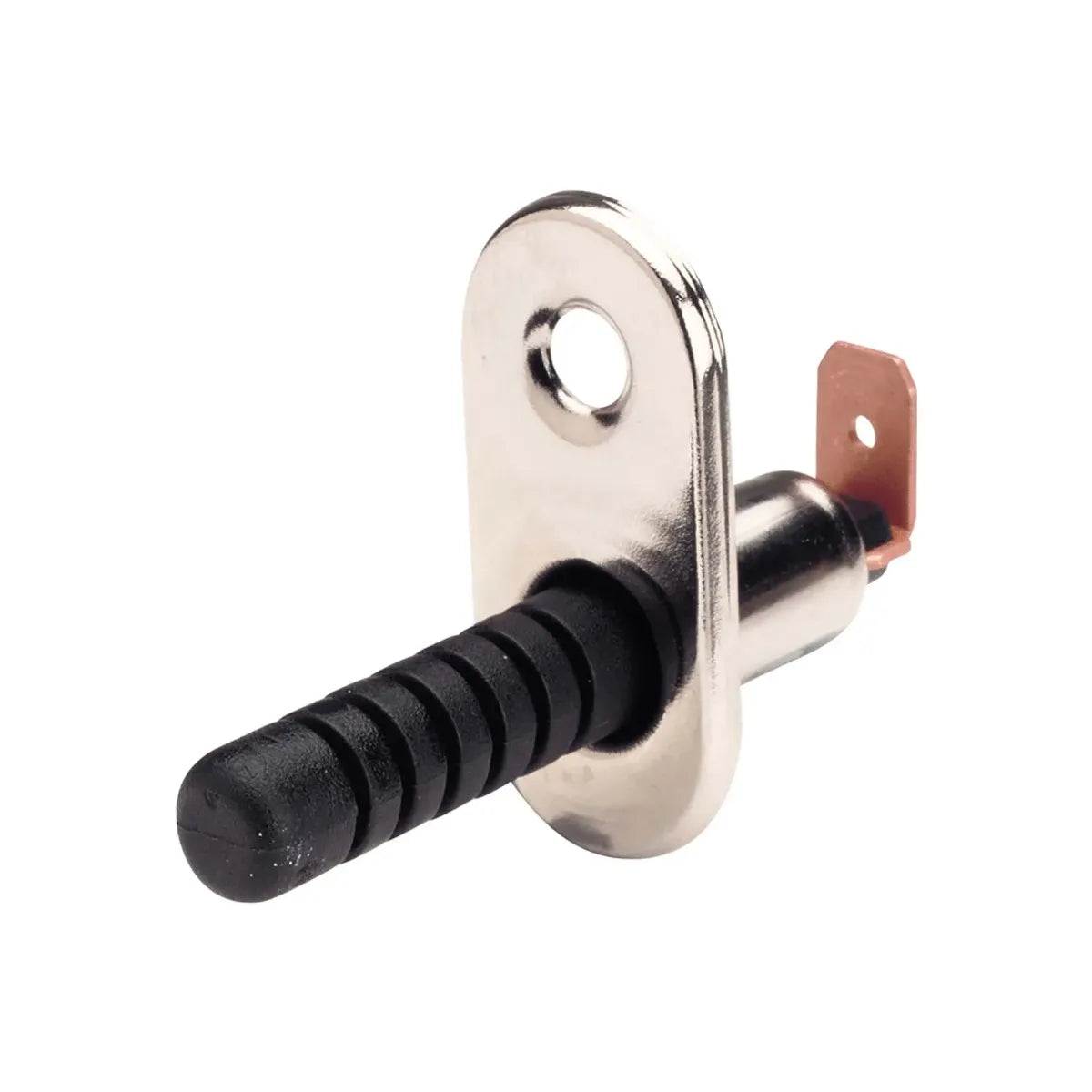

Narva universal door switch with extended arm suitable for cutting to length. SPST, normally closed contacts. Push-on terminal connection. Mounting opening 9.5mm diameter.
Specifications
Maximum Load: 10A @ 12V / 5A @ 24V
Contact Type: SPST normally closed

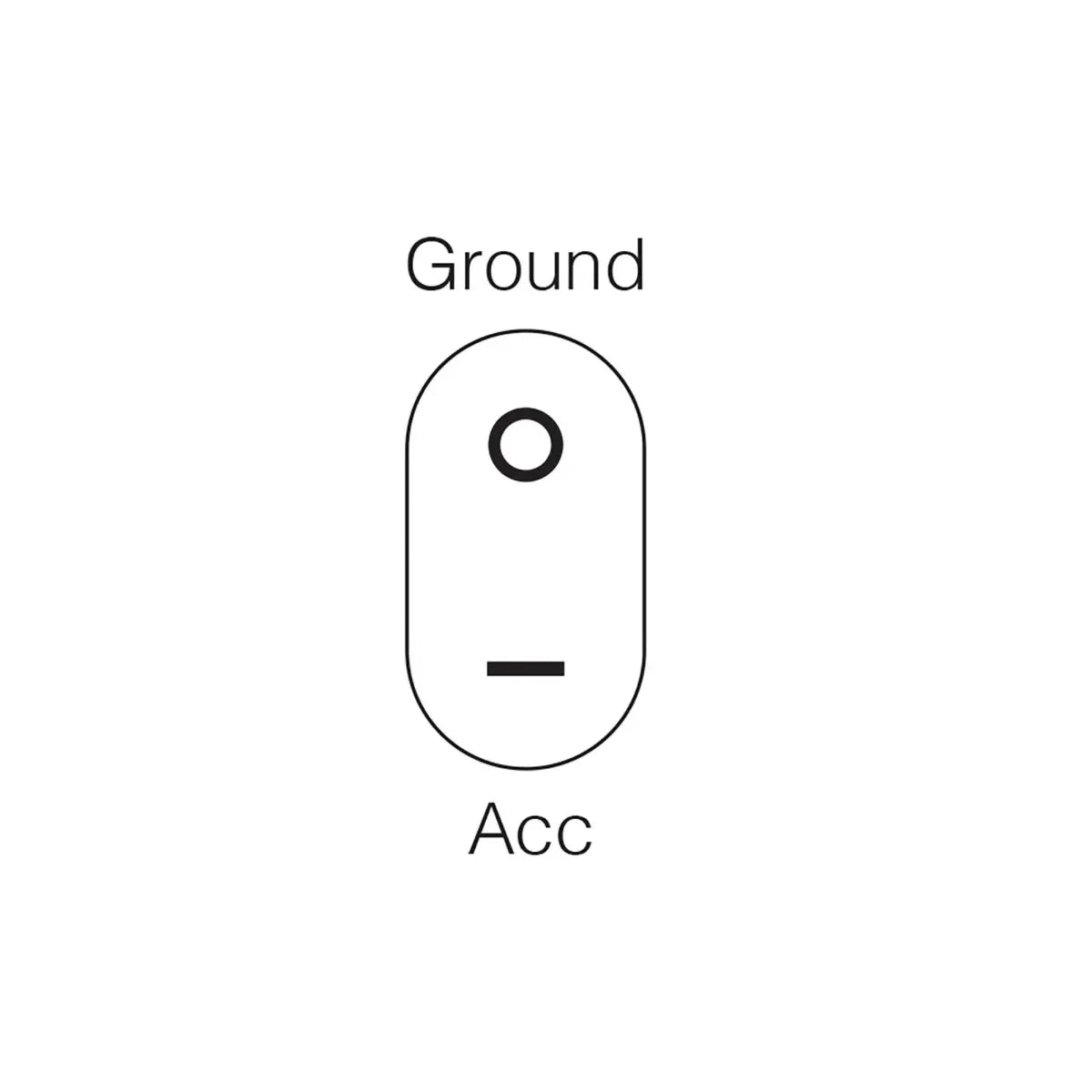

Terminal: Push-on
Mounting Opening: 9.5mm diameter
Arm: Extended, cuttable to length
Contact Type: SPST normally closed
Terminal: Push-on
Mounting Opening: 9.5mm diameter
Arm: Extended, cuttable to length
Features
- Normally closed contact — activates interior light when door opens
- Extended arm cuttable to length — adjustable for different door reveal depths
- 9.5mm mounting — installs in a small drilled hole
