Overview

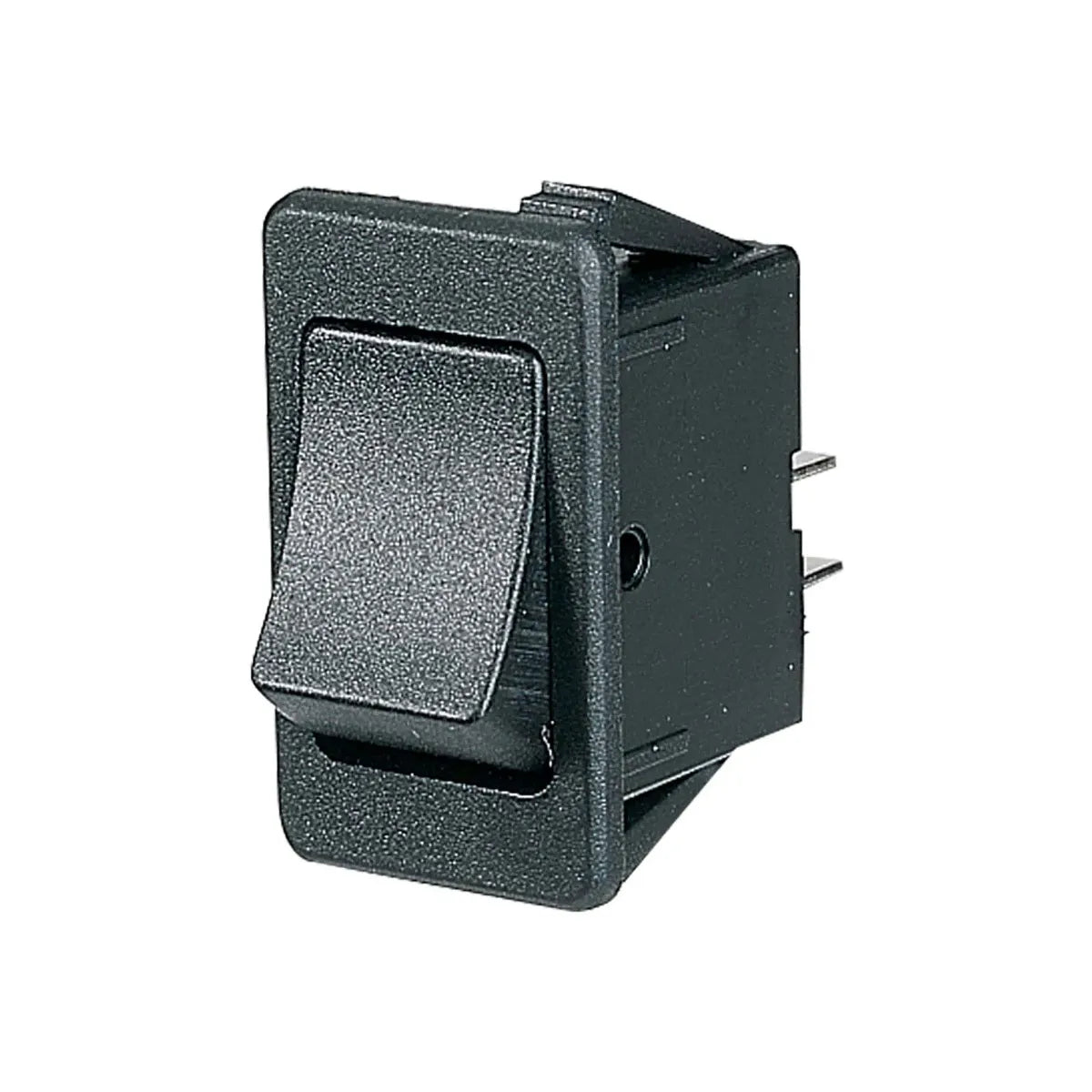

Narva Off/On rocker switch. DPST, push-fit design with 6.3mm push-on blade terminals. Rated to 20A at 12V or 10A at 24V. Mounting opening 34.5 x 20mm.
Specifications
Maximum Load: 20A @ 12V / 10A @ 24V
Contact Type: DPST
Terminal: 6.3mm push-on blade
Action: Off/On
Mounting Opening: 34.5 x 20mm
Contact Type: DPST
Terminal: 6.3mm push-on blade
Action: Off/On
Mounting Opening: 34.5 x 20mm
Features
- DPST — switches two circuits simultaneously from a single rocker
- Push-fit design — fast installation into standard panel openings
- 6.3mm blade terminals — common terminal size for automotive wiring
