Overview

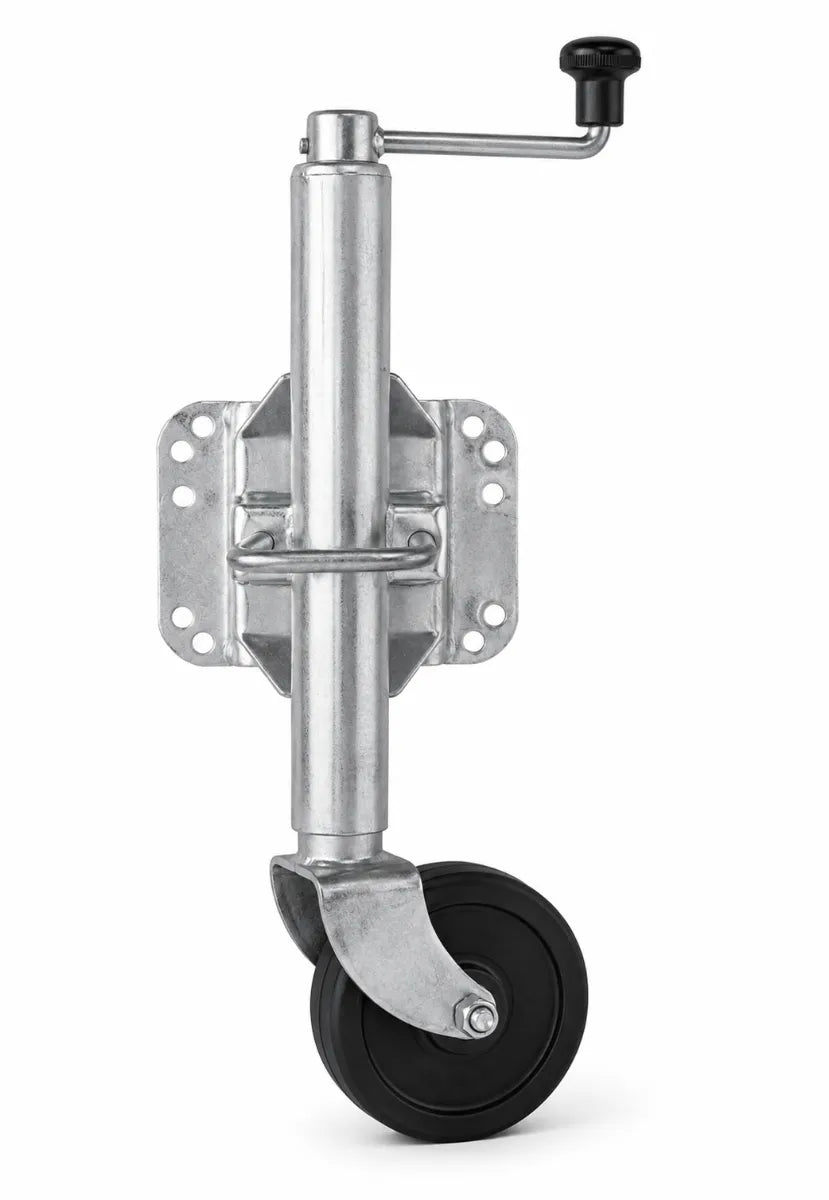

Manutec jockey wheel with 6x2" (150 x 50mm) solid rubber tyre with nylon web bore, pin locking swivel bracket for U-bolt fixing. Lift 225mm, static load capacity 350kg. Suits 2" to 6" U-bolts.
Specifications
Wheel: 150 x 50mm (6x2") solid rubber, nylon web bore
Lift: 225mm
Static Load Capacity: 350kg
Outer Tube Height: 360mm
Castor Wheel Height: 160mm
Height to Bracket Centre: 310mm
Weight: 6.2kg
U-Bolt Sizes: 2", 3", 4", 5", 6"
Lift: 225mm
Static Load Capacity: 350kg
Outer Tube Height: 360mm
Castor Wheel Height: 160mm
Height to Bracket Centre: 310mm
Weight: 6.2kg
U-Bolt Sizes: 2", 3", 4", 5", 6"
Features
- Solid rubber wheel — puncture-proof, no maintenance required
- Pin locking swivel bracket — positive height retention
- U-bolt fixing — non-welded attachment to drawbar
- 225mm lift — suits standard trailer hitch heights
- Nylon web bore — lightweight, self-lubricating
- 350kg capacity
Fitment / Notes
- Suits: Light to medium trailers, 350kg capacity
- Bracket: U-bolt fixing, suits 2" to 6" U-bolts
