Overview

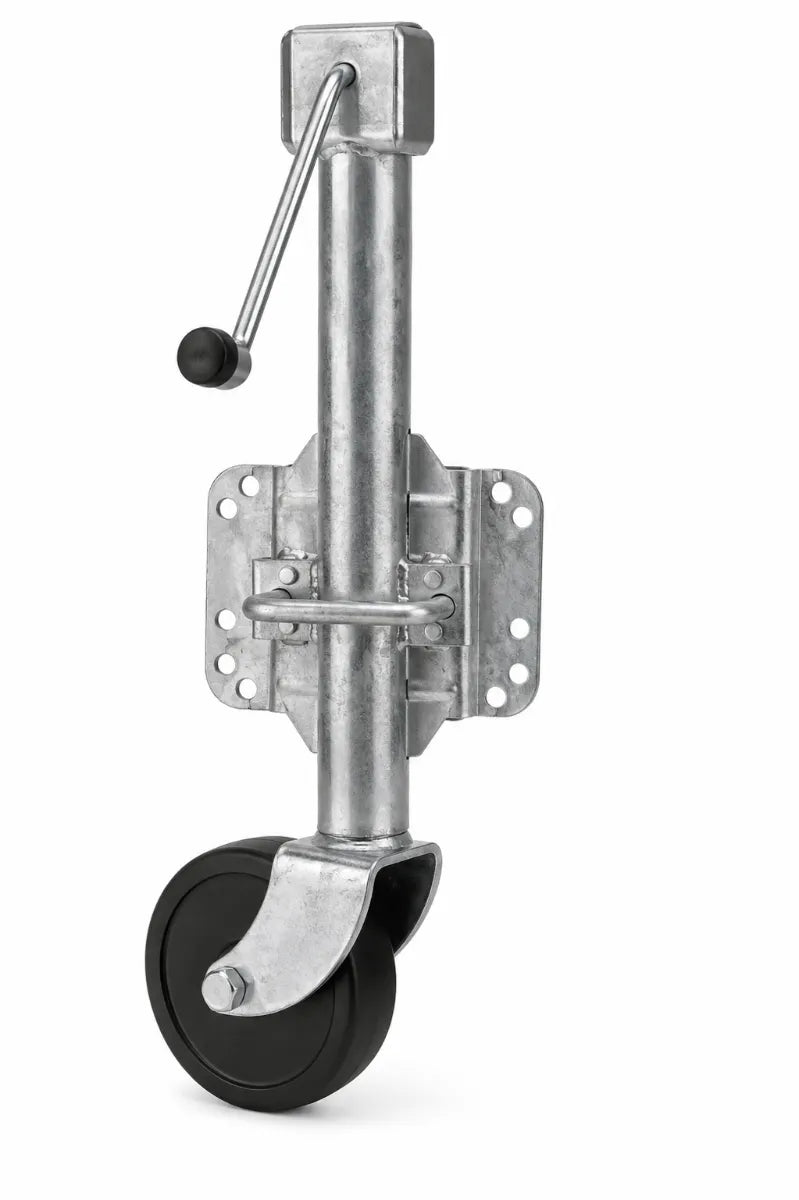

Manutec jockey wheel with 6x2" (150 x 50mm) solid rubber tyre with nylon web bore, side winding, pin locking swivel bracket for U-bolt fixing, galvanised finish. Lift 225mm, static load capacity 500kg. Suits 2" to 6" U-bolts.
Specifications
Wheel: 150 x 50mm (6x2") solid rubber, nylon web bore
Lift: 225mm
Static Load Capacity: 500kg
Outer Tube Height: 690mm
Castor Wheel Height: 160mm
Height to Bracket Centre: 280mm
Weight: 7.9kg
Finish: Galvanised
U-Bolt Sizes: 2", 3", 4", 5", 6"
Lift: 225mm
Static Load Capacity: 500kg
Outer Tube Height: 690mm
Castor Wheel Height: 160mm
Height to Bracket Centre: 280mm
Weight: 7.9kg
Finish: Galvanised
U-Bolt Sizes: 2", 3", 4", 5", 6"
Features
- Side winding mechanism — geared height adjustment under load
- Galvanised finish — superior corrosion resistance for marine and outdoor use
- U-bolt fixing — non-welded bracket attachment
- 690mm outer tube height — taller tube for lower mounted drawbars
- 500kg capacity
Fitment / Notes
- Suits: Trailers up to 500kg
- Bracket: U-bolt fixing, suits 2" to 6" U-bolts
- Note: Galvanised finish.
