Overview

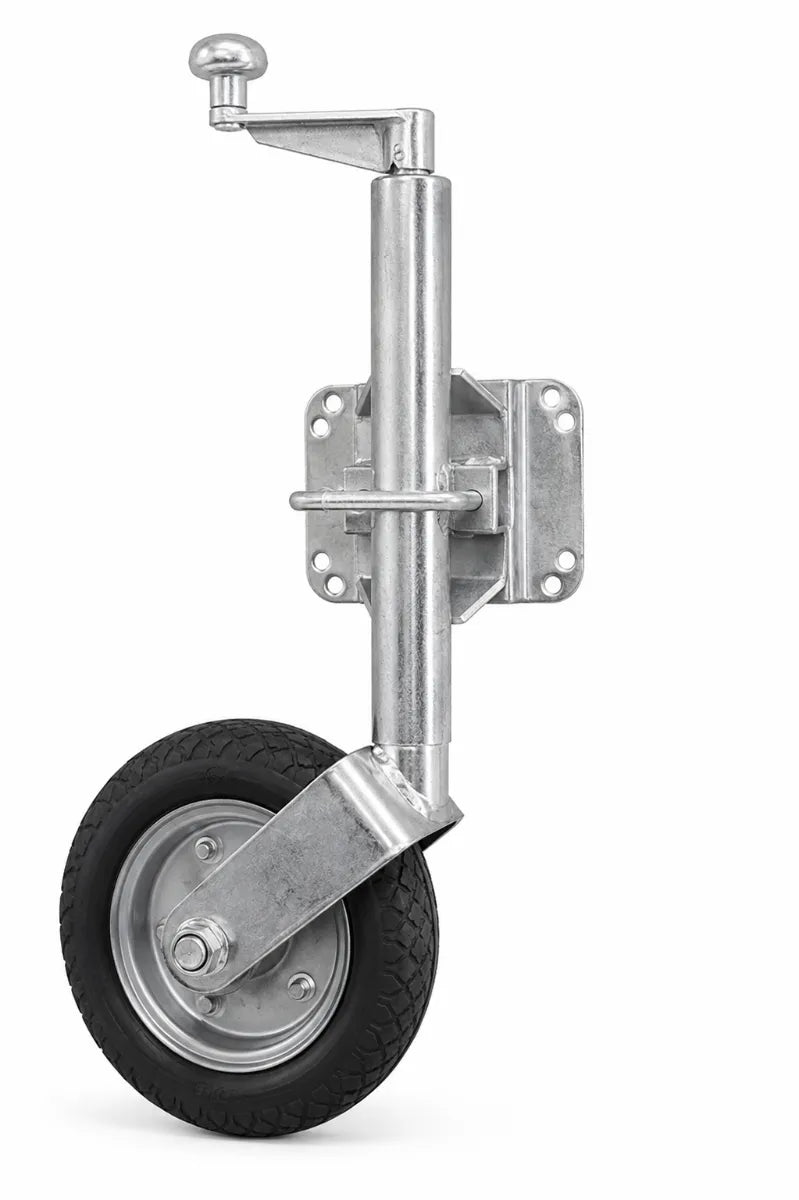

Manutec jockey wheel with 10" (3.50/4.10-4) solid cushion rubber tyre with steel centre and bronze bush bore, heavy duty pin locking swivel bracket for U-bolt fixing. Lift 225mm, static load capacity 1000kg. Suits 2" to 6" U-bolts.
Specifications
Wheel: 3.50/4.10-4 (10") solid cushion rubber, steel centre, bronze bush bore
Lift: 225mm
Static Load Capacity: 1000kg
Outer Tube Height: 360mm
Castor Wheel Height: 270mm
Height to Bracket Centre: 420mm
Weight: 13kg
U-Bolt Sizes: 2", 3", 4", 5", 6"
Lift: 225mm
Static Load Capacity: 1000kg
Outer Tube Height: 360mm
Castor Wheel Height: 270mm
Height to Bracket Centre: 420mm
Weight: 13kg
U-Bolt Sizes: 2", 3", 4", 5", 6"
Features
- Solid cushion rubber — puncture-proof, absorbs ground impact
- Bronze bush bore — long service life under high load
- 1000kg capacity — heaviest duty in the standard jockey wheel range
- Heavy duty U-bolt bracket — suits various drawbar sizes
Fitment / Notes
- Suits: Heavy trailers up to 1000kg
- Bracket: Heavy duty U-bolt fixing, suits 2" to 6" U-bolts
