Overview

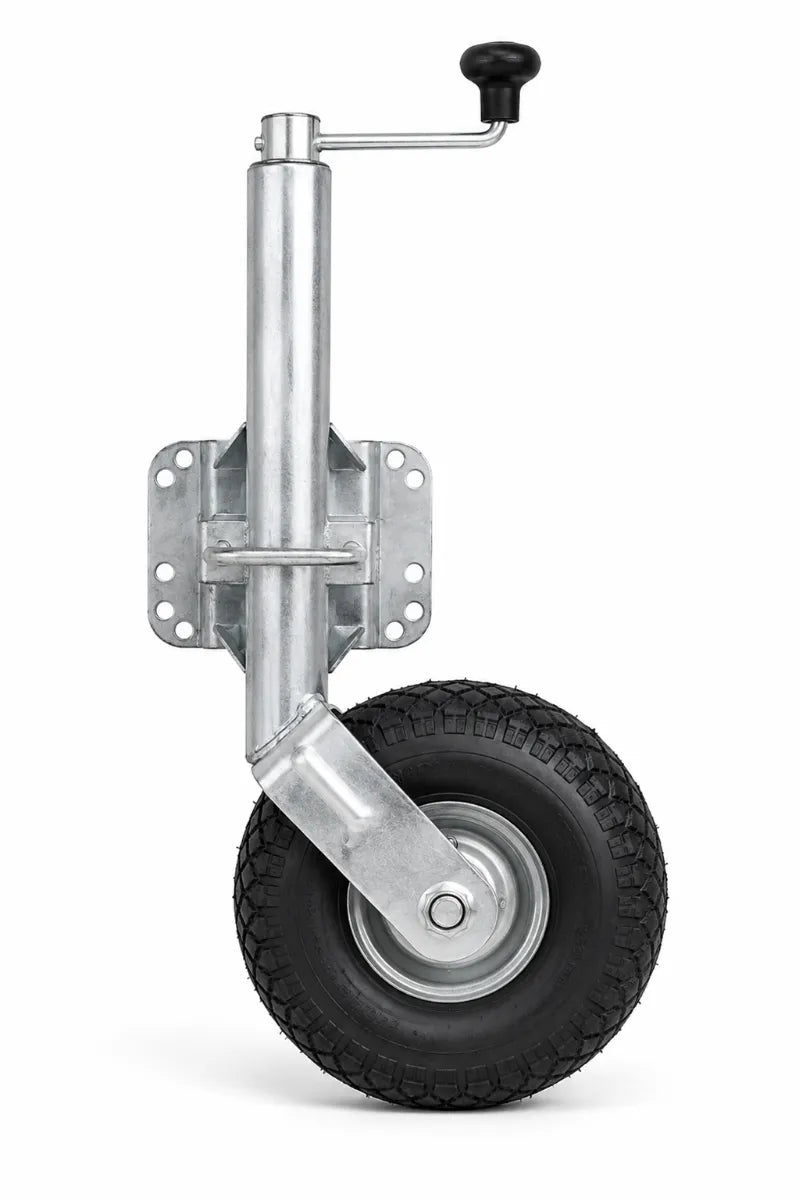

Manutec jockey wheel with 10" (3.50/4.10-4) pneumatic tyre with steel centre and bearings, pin locking swivel bracket for U-bolt fixing. Lift 225mm, static load capacity 350kg. Suits 2" to 6" U-bolts.
Specifications
Wheel: 3.50/4.10-4 (10") pneumatic, steel centre and bearings
Lift: 225mm
Static Load Capacity: 350kg
Outer Tube Height: 360mm
Castor Wheel Height: 270mm
Height to Bracket Centre: 365mm
Weight: 7.9kg
U-Bolt Sizes: 2", 3", 4", 5", 6"
Lift: 225mm
Static Load Capacity: 350kg
Outer Tube Height: 360mm
Castor Wheel Height: 270mm
Height to Bracket Centre: 365mm
Weight: 7.9kg
U-Bolt Sizes: 2", 3", 4", 5", 6"
Features
- Pneumatic tyre — absorbs ground impact for smoother trailer movement
- 225mm lift — suits standard trailer hitch heights
- Pin locking swivel bracket — positive height retention
- U-bolt fixing — non-welded attachment
- 350kg capacity
Fitment / Notes
- Suits: Light to medium trailers up to 350kg
- Bracket: U-bolt fixing, suits 2" to 6" U-bolts
