Overview

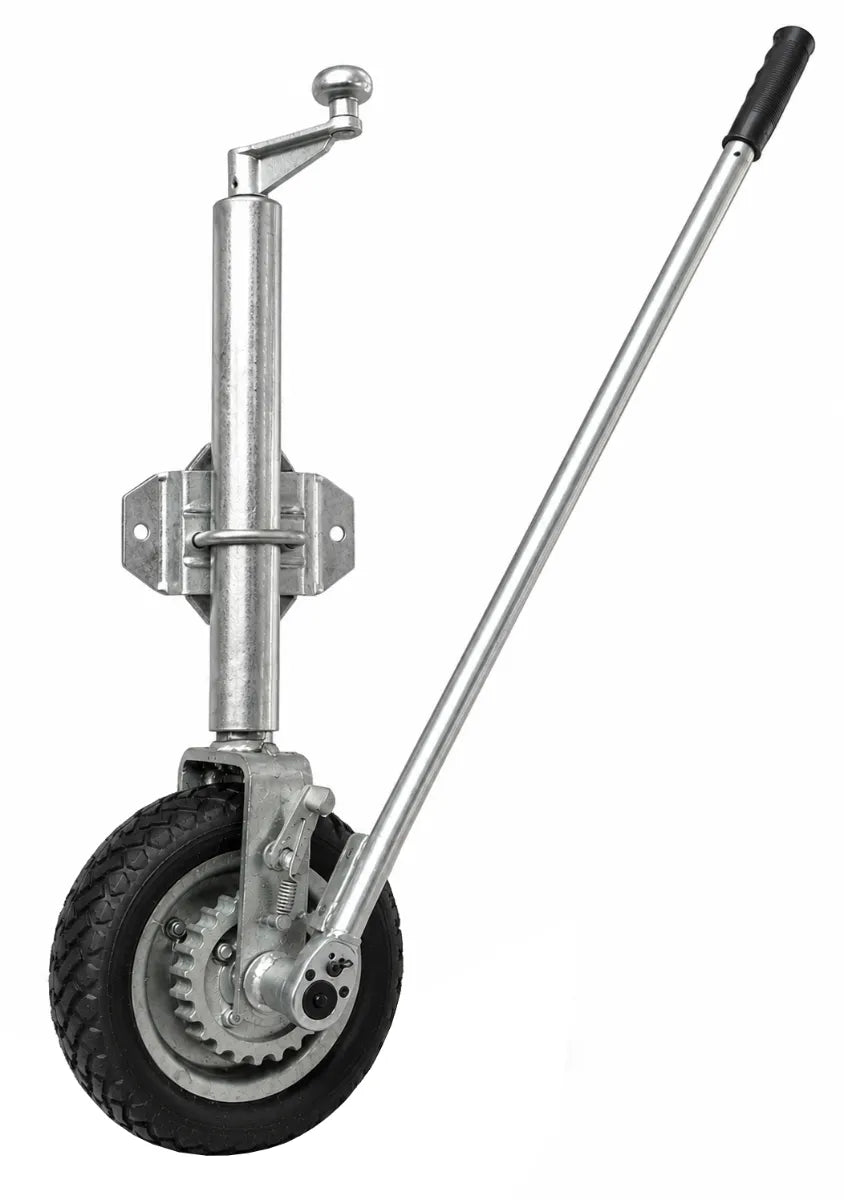

Manutec Easy Mover ratchet-driven jockey wheel with pin locking swivel bracket welded in position. 10" solid cushion rubber tyre, 750kg static load capacity. Lift 225mm, overall height 730mm.
Specifications
Wheel: 3.50/4.10-4 (10") solid cushion rubber, steel centre
Lift: 225mm
Overall Height: 730mm
Height to Bracket: 430mm
Static Load Capacity: 750kg
Weight: 16.5kg
Includes: Pin locking swivel bracket welded
Lift: 225mm
Overall Height: 730mm
Height to Bracket: 430mm
Static Load Capacity: 750kg
Weight: 16.5kg
Includes: Pin locking swivel bracket welded
Features
- Ratchet-driven mechanism — lifts trailer with minimal effort
- 10" solid cushion rubber — puncture-proof
- 750kg capacity
- Pin locking swivel bracket welded — stronger permanent mounting option
