LED Autolamps·
58ARM
LED Side Position Marker Light Red/Amber 12-24V Black Base 35x58x21mm
LED Side Position Marker Light Red/Amber 12-24V Black Base 35x58x21mm
Quantity
Regular price
$22.89 AUD
Regular price
Sale price
$22.89 AUD
Couldn't load pickup availability
Pins are saved on this device only. Clearing browser history removes them.
View full details
Overview
LED Autolamps Amber/Red Side Marker lamp. 12-24V input. 58mm x 35mm x 21mm IP67 rated.
Specifications
Voltage: 12-24V
Function: Amber/Red Side Marker

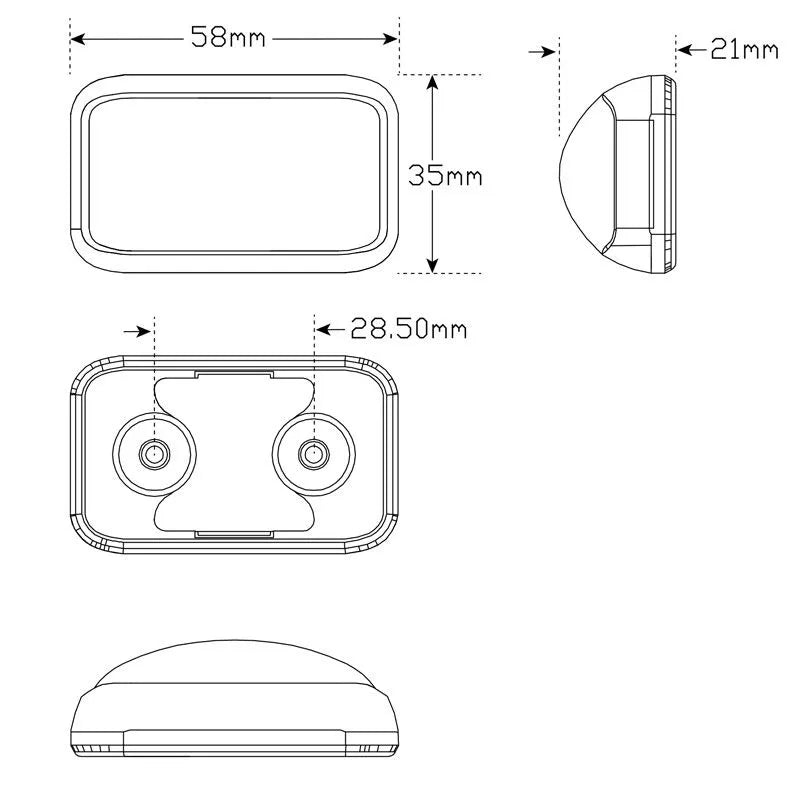

Dimensions: 58mm x 35mm x 21mm
LEDs: 2
Ingress protection: IP67
Cable: 40cm or 3m (Bare Wires), 20cm (CSB Plug)
Supplied as: Single
Function: Amber/Red Side Marker
Dimensions: 58mm x 35mm x 21mm
LEDs: 2
Ingress protection: IP67
Cable: 40cm or 3m (Bare Wires), 20cm (CSB Plug)
Supplied as: Single
Features
- Clip-in replaceable lens — damaged lens can be swapped without replacing the full lamp unit
- Low profile design — minimal protrusion from mounting surface
Fitment / Notes
- Mounting: Surface mount bracket, run wires through back and clip lens into place. Please refer to ADR 13/00 for mounting instructions.
Warranty
5 Years
