LED Autolamps·
250ARWM

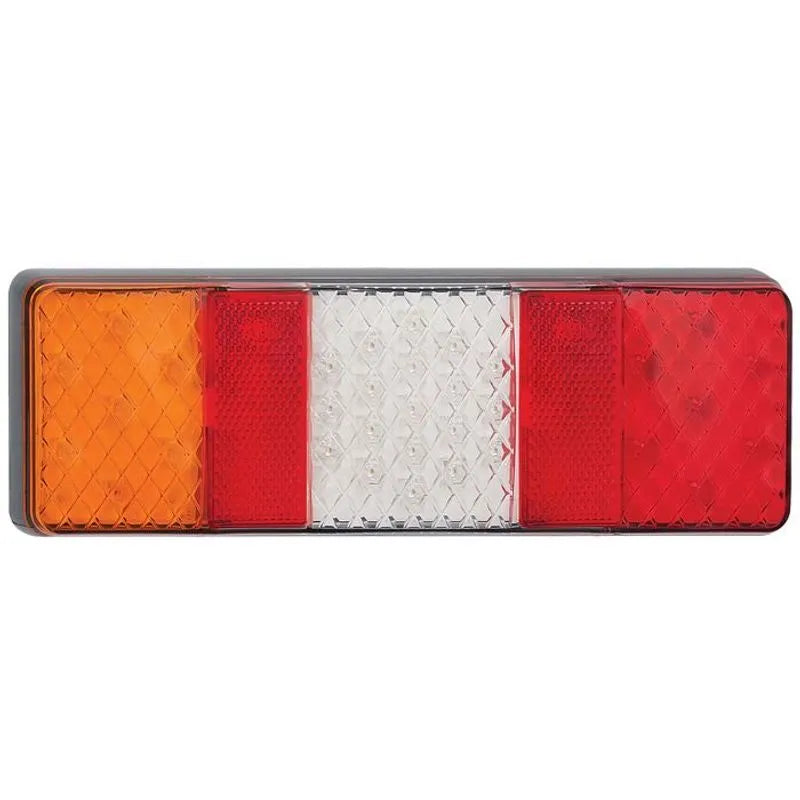

LED Combination Light Stop/Tail/Ind/Rev 12-24V
LED Combination Light Stop/Tail/Ind/Rev 12-24V
Quantity
Regular price
$200.09 AUD
Regular price
Sale price
$200.09 AUD
Couldn't load pickup availability
Pins are saved on this device only. Clearing browser history removes them.
View full details
Overview
LED Autolamps Stop/Tail/Indicator/Reverse lamp. 12-24V input. 250mm x 80mm x 24mm IP67 rated.
Specifications
Voltage: 12-24V
Function: Stop/Tail/Indicator/Reverse
Dimensions: 250mm x 80mm x 24mm
LEDs: 33
Ingress protection: IP67
Cable: 40cm
Current draw @ 28V: 0.17A / 0.03A / 0.17A / 0.13A
Supplied as: Single
Function: Stop/Tail/Indicator/Reverse
Dimensions: 250mm x 80mm x 24mm
LEDs: 33
Ingress protection: IP67
Cable: 40cm
Current draw @ 28V: 0.17A / 0.03A / 0.17A / 0.13A
Supplied as: Single
Fitment / Notes
- Mounting: Surface mount (Horizontally or Vertically) using bolts in the back of the lamp, run wire and plug through a 10mm hole in the fixing surface. Please refer to ADR 13/00 for mounting instructions.
Warranty
5 Years
