LED Autolamps·
275ARWM

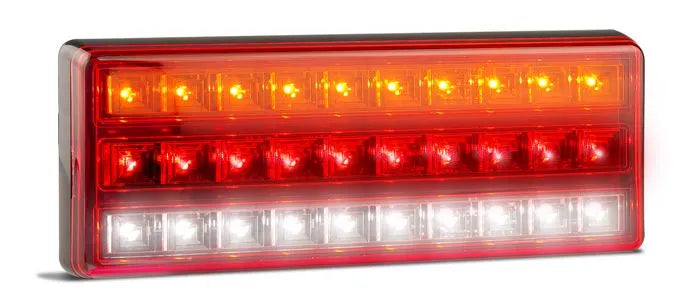

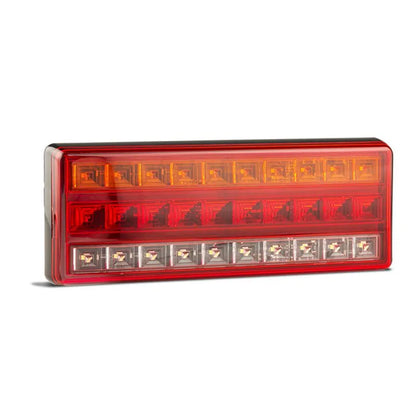

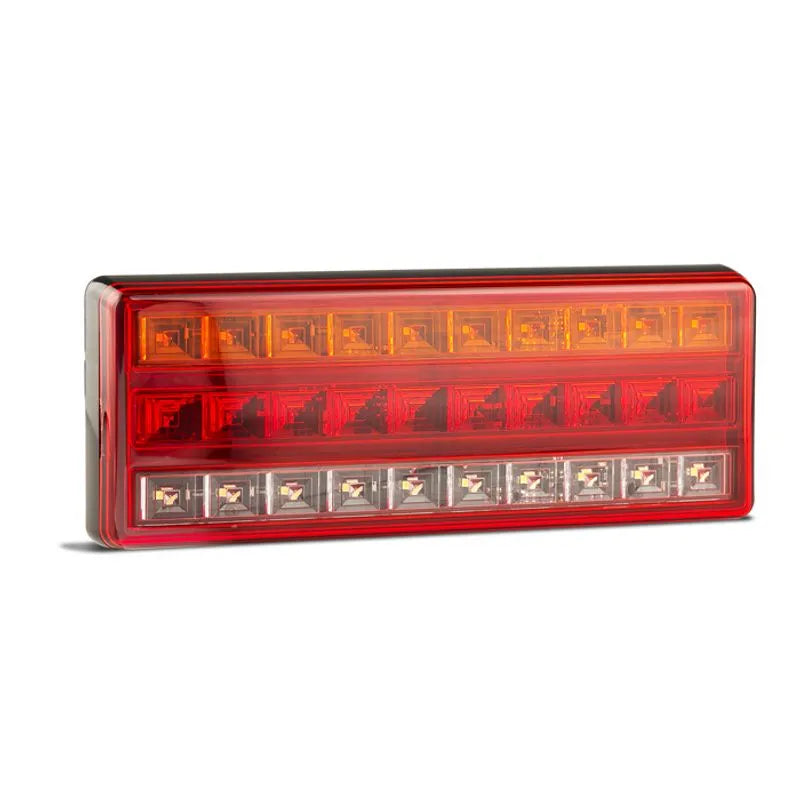

LED Combination Lamp 12-24V Stop/Tail/Ind/Reverse 275x100x22mm
LED Combination Lamp 12-24V Stop/Tail/Ind/Reverse 275x100x22mm
Quantity
Regular price
$129.29 AUD
Regular price
Sale price
$129.29 AUD
Couldn't load pickup availability
Pins are saved on this device only. Clearing browser history removes them.
View full details
Overview
LED Autolamps Stop/Tail/Indicator/Reverse lamp. 12-24V input. 275mm x 100mm x 22mm IP67 rated.
Specifications
Voltage: 12-24V
Function: Stop/Tail/Indicator/Reverse
Dimensions: 275mm x 100mm x 22mm
LEDs: 30
Ingress protection: IP67
Cable: 30cm Sheathed
Current draw @ 28V: 0.10A / 0.02A / 0.06A / 0.10A
Supplied as: Single
Function: Stop/Tail/Indicator/Reverse
Dimensions: 275mm x 100mm x 22mm
LEDs: 30
Ingress protection: IP67
Cable: 30cm Sheathed
Current draw @ 28V: 0.10A / 0.02A / 0.06A / 0.10A
Supplied as: Single
Fitment / Notes
- Mounting: Horizontally mount onto a flat surface with the Indicator at the top using bolts in the back of the lamp, run wire and through a hole in the fixing surface. Please refer to ADR 13/00 for mounting instructions.
Warranty
5 Years
