LED Autolamps·
80BARWM

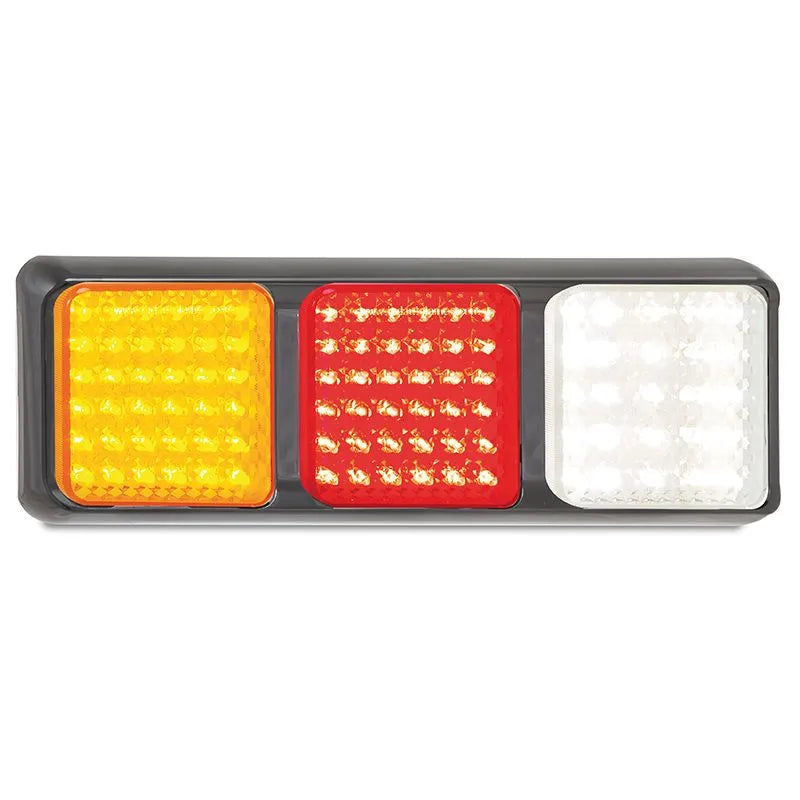

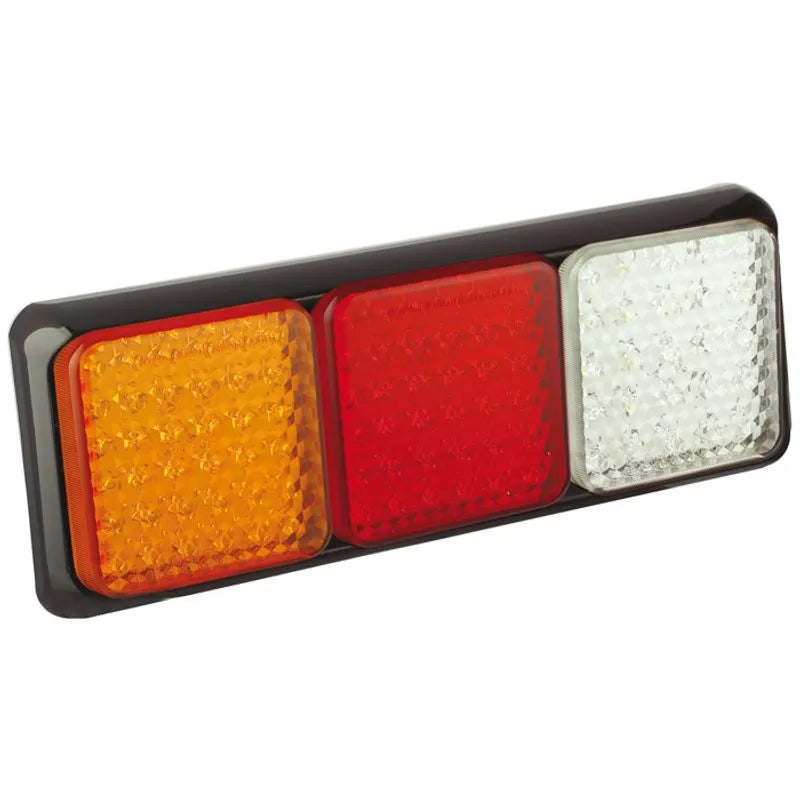

LED Combination Lamp 12-24V Stop/Tail/Ind/Rev Black Bracket 278x100x32mm
LED Combination Lamp 12-24V Stop/Tail/Ind/Rev Black Bracket 278x100x32mm
Quantity
Regular price
$285.39 AUD
Regular price
Sale price
$285.39 AUD
Couldn't load pickup availability
Pins are saved on this device only. Clearing browser history removes them.
View full details
Overview
LED Autolamps Stop/Tail/Indicator/Reverse lamp. 12-24V input. 278mm x 100mm x 28mm IP67 rated.
Specifications
Voltage: 12-24V
Function: Stop/Tail/Indicator/Reverse
Dimensions: 278mm x 100mm x 28mm
LEDs: 97
Ingress protection: IP67
Cable: 40cm
Current draw @ 28V: 0.24A / 0.07A / 0.23A / 0.17A
Supplied as: Single
Function: Stop/Tail/Indicator/Reverse
Dimensions: 278mm x 100mm x 28mm
LEDs: 97
Ingress protection: IP67
Cable: 40cm
Current draw @ 28V: 0.24A / 0.07A / 0.23A / 0.17A
Supplied as: Single
Fitment / Notes
- Mounting: Horizontally mount onto a flat surface with screws provided (for vertical mount, use P/N: 80B3V), run wires through the back and clip the lens into place. Please refer to ADR 13/00
Warranty
5 Years
