LED Autolamps·
275ARM

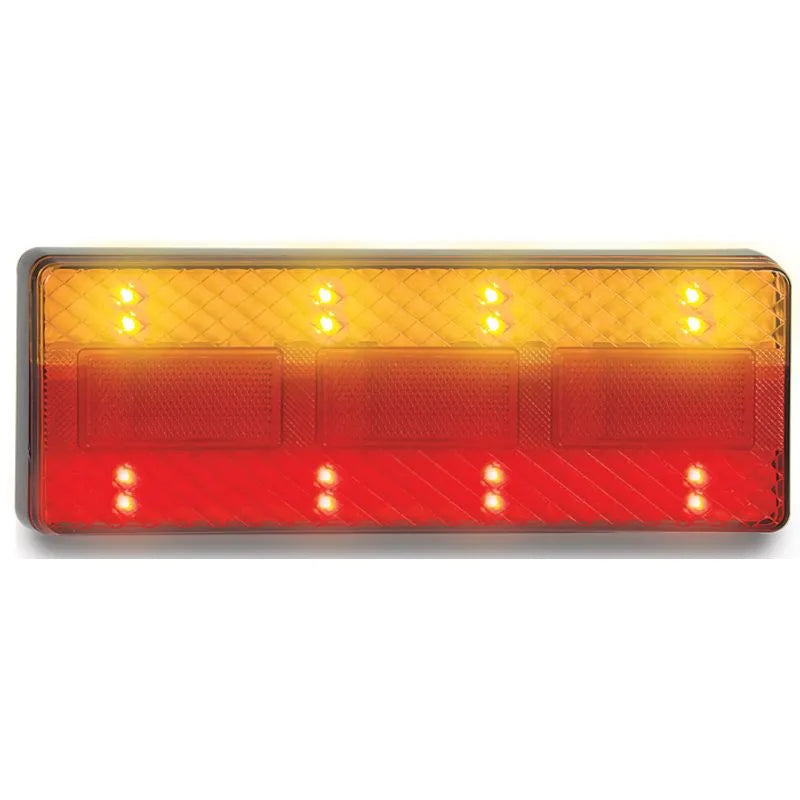

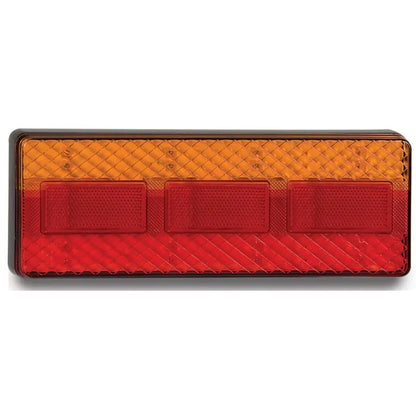

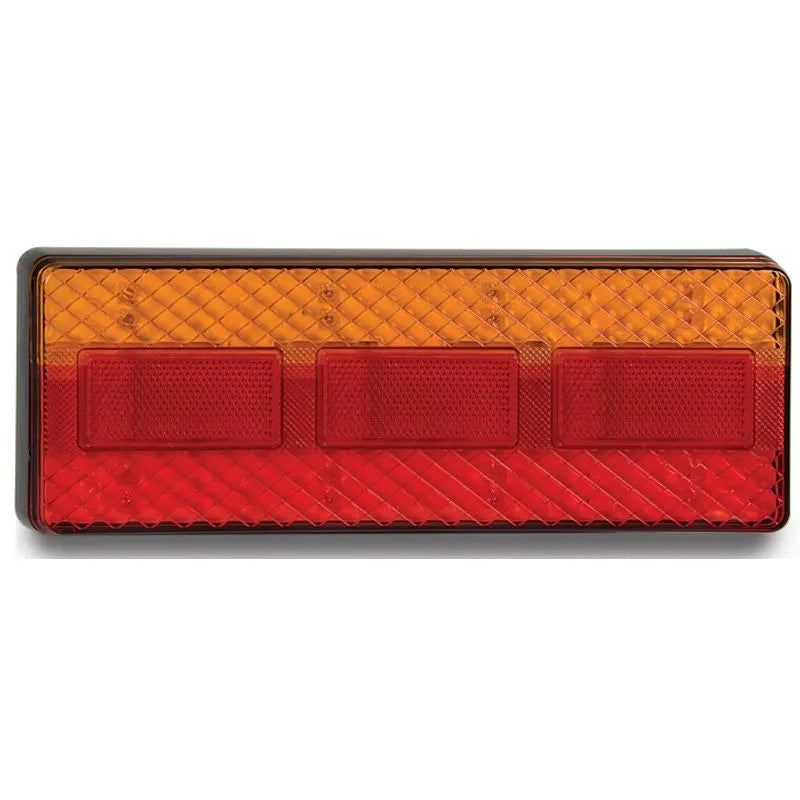

LED Combination Lamp 12-24V Stop/Tail/Ind/Reflector 275x100x22mm
LED Combination Lamp 12-24V Stop/Tail/Ind/Reflector 275x100x22mm
Quantity
Regular price
$127.19 AUD
Regular price
Sale price
$127.19 AUD
Couldn't load pickup availability
Pins are saved on this device only. Clearing browser history removes them.
View full details
Overview
LED Autolamps Stop/Tail/Indicator/Reflector lamp. 12-24V input. 275mm x 100mm x 22mm IP67 rated.
Specifications
Voltage: 12-24V
Function: Stop/Tail/Indicator/Reflector
Dimensions: 275mm x 100mm x 22mm
LEDs: 16
Ingress protection: IP67
Cable: 40cm cable with plug
Current draw @ 28V: 0.11A / 0.05A / 0.12A
Supplied as: Single
Function: Stop/Tail/Indicator/Reflector
Dimensions: 275mm x 100mm x 22mm
LEDs: 16
Ingress protection: IP67
Cable: 40cm cable with plug
Current draw @ 28V: 0.11A / 0.05A / 0.12A
Supplied as: Single
Features
- Integrated reflector — meets ADR 47/00 without a separate reflector unit
Fitment / Notes
- Mounting: Horizontally mount onto a flat surface with the Indicator at the top using bolts in the back of the lamp, run wire and plug through a 10mm hole in the fixing surface. Please refer to ADR 13/00 for mounting instructions.
Warranty
Lifetime
