LED Autolamps·
150ARM

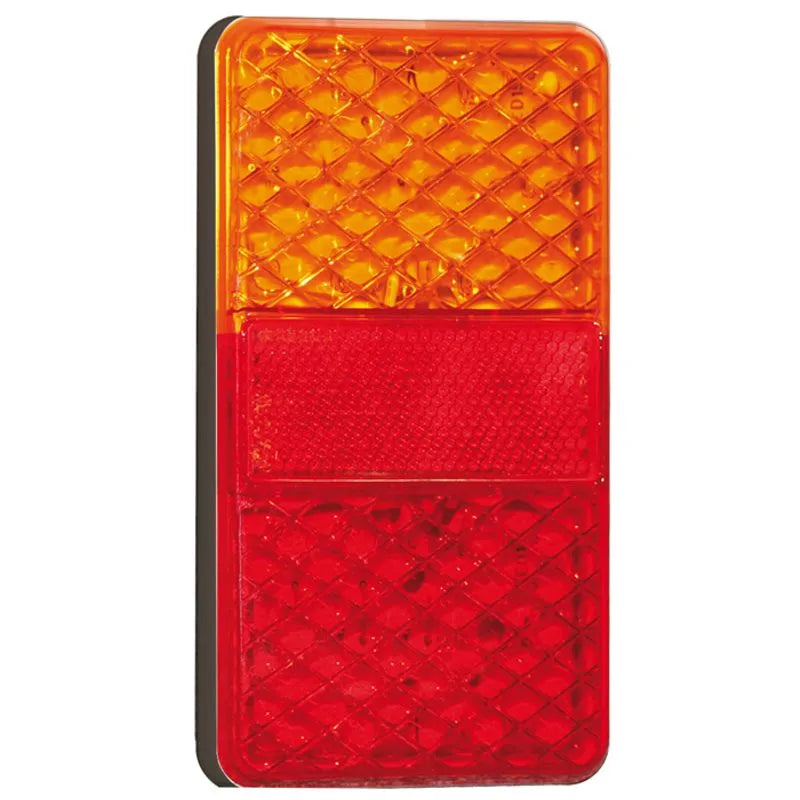

LED Combination Lamp 12-24V Stop/Tail/Indicator & Reflector 150x80x24mm
LED Combination Lamp 12-24V Stop/Tail/Indicator & Reflector 150x80x24mm
Quantity
Regular price
$97.09 AUD
Regular price
Sale price
$97.09 AUD
Couldn't load pickup availability
Overview
LED Autolamps Stop/Tail/Indicator / Reflector lamp. 12V input. 150mm x 80mm x 24mm IP67 rated.
Specifications
Voltage: 12V
Function: Stop/Tail/Indicator / Reflector
Dimensions: 150mm x 80mm x 24mm
LEDs: 14
Ingress protection: IP67
Cable: 30cm (Bare Wires), 20cm (Deutsch Plug)
Current draw @ 28V: 0.12A / 0.06A / 0.07A
Supplied as: Single
Function: Stop/Tail/Indicator / Reflector
Dimensions: 150mm x 80mm x 24mm
LEDs: 14
Ingress protection: IP67
Cable: 30cm (Bare Wires), 20cm (Deutsch Plug)
Current draw @ 28V: 0.12A / 0.06A / 0.07A
Supplied as: Single
Features
- Diamond pattern lens — distinctive appearance with wide light distribution
- Low profile design — minimal protrusion from mounting surface
- Integrated reflector — meets ADR 47/00 without a separate reflector unit
Fitment / Notes
- Mounting: Surface mount onto flat surface vertically with Indicator at the top using bolts in the back of the lamp, run wire and plug through 10mm hole in fixing surface. Please refer to ADR 13/00 for mounting instructions.
Warranty
Lifetime
