LED Autolamps·
280ARWM

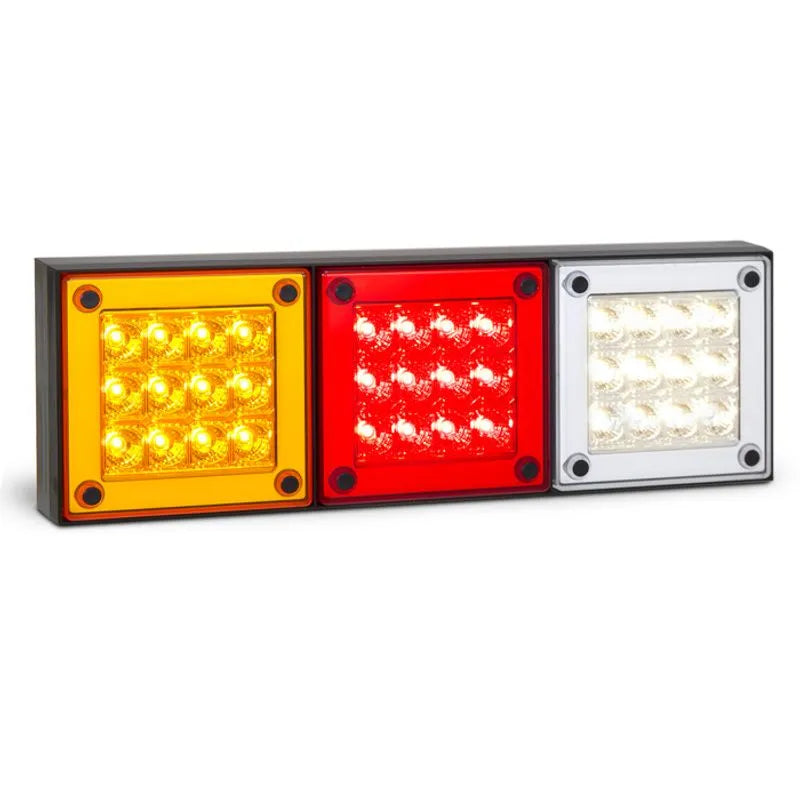

LED Combination Lamp 12-24V Stop/Tail/Ind/ Reverse 280x95x28mm
LED Combination Lamp 12-24V Stop/Tail/Ind/ Reverse 280x95x28mm
Quantity
Regular price
$182.49 AUD
Regular price
Sale price
$182.49 AUD
Couldn't load pickup availability
Overview
LED Autolamps Stop/Tail/Indicator/Reverse lamp. 12-24V input. 282mm x 95mm x 28mm IP67 rated.
Specifications
Voltage: 12-24V
Function: Stop/Tail/Indicator/Reverse
Dimensions: 282mm x 95mm x 28mm
LEDs: 36
Ingress protection: IP67
Cable: 1.2m (Bare Wires), 20cm (CSB Plug)
Current draw @ 28V: 0.11A / 0.03A / 0.11A / 0.13A
Supplied as: Single
Function: Stop/Tail/Indicator/Reverse
Dimensions: 282mm x 95mm x 28mm
LEDs: 36
Ingress protection: IP67
Cable: 1.2m (Bare Wires), 20cm (CSB Plug)
Current draw @ 28V: 0.11A / 0.03A / 0.11A / 0.13A
Supplied as: Single
Fitment / Notes
- Mounting: Surface mount (Horizontally or Vertically) onto a flat surface with stainless steel bolts provided in assembly and run cable through a 12mm hole. Please refer to ADR 13/00.
Warranty
5 Years
