Overview

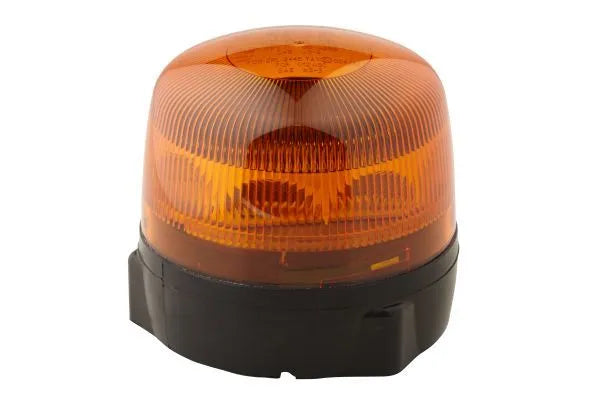

Hella RotaLED amber LED warning beacon with simulated rotation at 120–133 RPM (2.0–2.2Hz). Impact and dirt-resistant polycarbonate lens.
Multivolt 10–32V DC. Fixed upright mount on horizontal surfaces. Supplied with spiral cable extending up to 2.5m and 2-pole plug for cigarette lighter or DIN socket.
Specifications
Voltage: Multivolt 10–32V DC

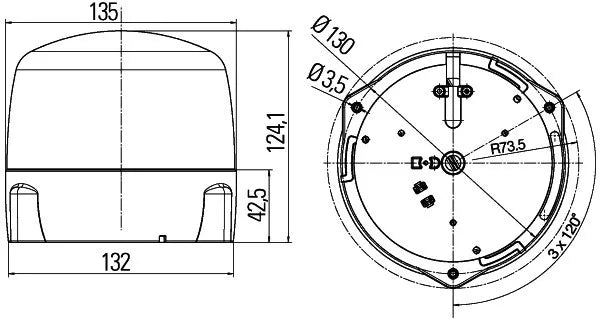

Dimensions: 135mm diameter x 124mm height
Power Consumption: 10W (12V and 24V)
Current Draw: 0.8A @ 12V / 0.4A @ 24V
Simulated Rotation: 120–133 RPM (2.0–2.2Hz)
Lens: Polycarbonate
Mounting: Fixed upright, horizontal surface
Cable: Spiral, extends to 2.5m
Connector: 2-pole plug (cigarette lighter or DIN)
IP Rating: IP5KX, IPX4K, IPX9K
EMC: CISPR25 Power Controlled Class 5
Dimensions: 135mm diameter x 124mm height
Power Consumption: 10W (12V and 24V)
Current Draw: 0.8A @ 12V / 0.4A @ 24V
Simulated Rotation: 120–133 RPM (2.0–2.2Hz)
Lens: Polycarbonate
Mounting: Fixed upright, horizontal surface
Cable: Spiral, extends to 2.5m
Connector: 2-pole plug (cigarette lighter or DIN)
IP Rating: IP5KX, IPX4K, IPX9K
EMC: CISPR25 Power Controlled Class 5
Features
- Multivolt 10–32V — suits 12V and 24V vehicles without modification
- Simulated rotation at 120–133 RPM — high-visibility warning signal
- Impact-resistant polycarbonate lens — durable in demanding work environments
- IPX9K rated — protected against high-pressure steam jet cleaning
- Supplied with spiral cable and plug — ready to connect to cigarette lighter or DIN socket
Fitment / Notes
- Complies: ECE R65 TA1, ECE-R10
- E-marks: E1 00 3109, E1 03 5517
- Mounting: Fixed upright on horizontal surface
