Overview

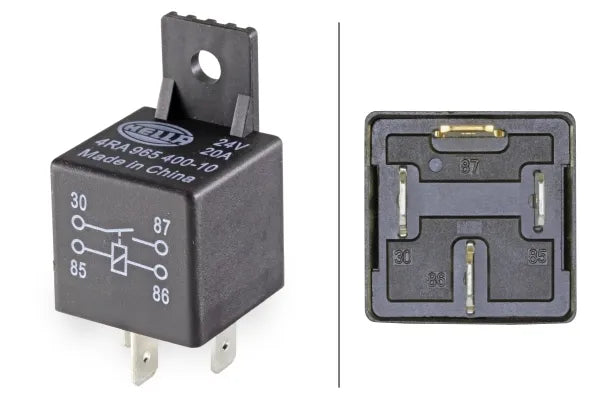

Hella mini relay, 24V, 4-pin normally open with holder. Rated to 20A at 24V.
Specifications
Voltage: 24V
Pins: 4
Contact Type: Normally open
Rated Current: 20A
Ohmic Load: 30A
Inductive Load: 5A
Capacitive Load: 5A
Temperature Range: -40°C to 125°C
Coil Resistance: 320 Ohm
Switching Operations: Max. 100,000
Includes: Holder
Pins: 4
Contact Type: Normally open
Rated Current: 20A
Ohmic Load: 30A
Inductive Load: 5A
Capacitive Load: 5A
Temperature Range: -40°C to 125°C
Coil Resistance: 320 Ohm
Switching Operations: Max. 100,000
Includes: Holder
Features
- Mini relay format — compact size suits tight mounting locations in vehicle wiring
- Supplied with holder — ready to mount without additional hardware
- 100,000 switching operations rated — long service life for automotive switching applications
- 24V rated — suits heavy commercial and truck electrical systems
