Overview

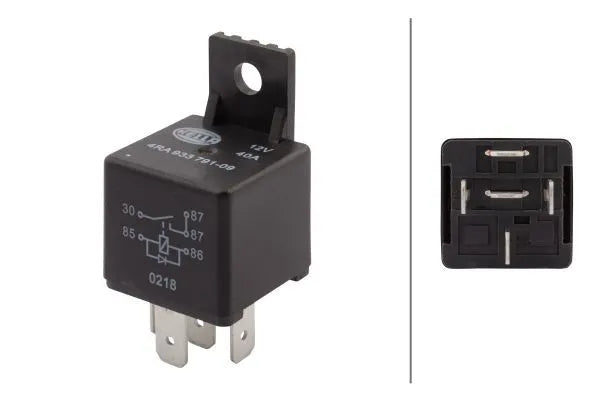

Hella mini relay, 12V, 5-pin normally open with holder and suppression diode. Two 87 connections for switching paired consumers such as auxiliary headlights.
Specifications
Voltage: 12V

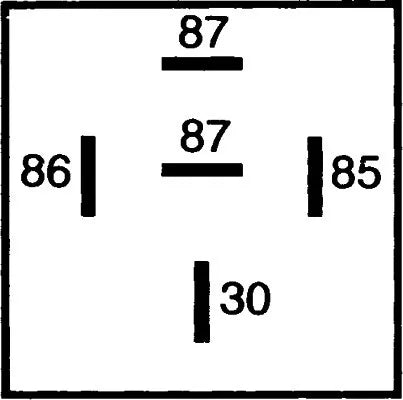

Pins: 5
Contact Type: Normally open
Rated Current: 40A
Ohmic Load: 40A
Inductive Load: 15A
Capacitive Load: 5A
Temperature Range: -40°C to 125°C
Includes: Holder, suppression diode
Pins: 5
Contact Type: Normally open
Rated Current: 40A
Ohmic Load: 40A
Inductive Load: 15A
Capacitive Load: 5A
Temperature Range: -40°C to 125°C
Includes: Holder, suppression diode
Features
- Mini relay format — compact size suits tight mounting locations in vehicle wiring
- Supplied with holder — ready to mount without additional hardware
- 100,000 switching operations rated — long service life for automotive switching applications
- Dual 87 connections — switches two paired consumers simultaneously (e.g. both auxiliary headlights)

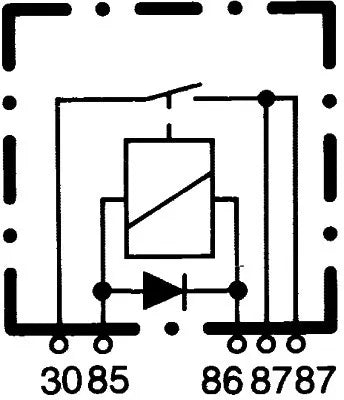

- Suppression diode — protects against inductive voltage spikes on deactivation
