Overview

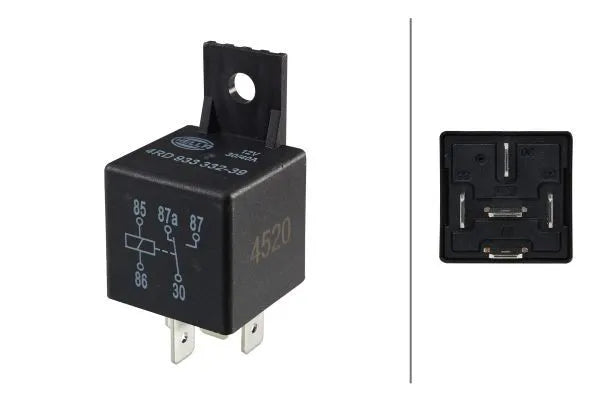

Hella mini relay, 12V, 5-pin changeover (change-over) with holder. Rated to 40A ohmic load.
Specifications
Voltage: 12V
Pins: 5
Contact Type: Changeover
Rated Current: 40A
Ohmic Load: 40A
Inductive Load: 15A
Capacitive Load: 5A
Temperature Range: -40°C to 125°C
Coil Resistance: 85 Ohm
Switching Operations: Max. 100,000
Includes: Holder
Pins: 5
Contact Type: Changeover
Rated Current: 40A
Ohmic Load: 40A
Inductive Load: 15A
Capacitive Load: 5A
Temperature Range: -40°C to 125°C
Coil Resistance: 85 Ohm
Switching Operations: Max. 100,000
Includes: Holder
Features
- Mini relay format — compact size suits tight mounting locations in vehicle wiring
- Supplied with holder — ready to mount without additional hardware
- 100,000 switching operations rated — long service life for automotive switching applications
- Changeover contact — switches between two circuits from a single relay
- 5-pin configuration — suits NC and NO switching applications
