Overview

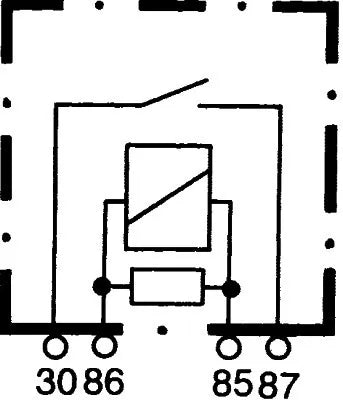

Hella mini relay, 12V, 4-pin normally open (make contact) with holder and parallel resistor to coil. Rated to 40A ohmic load. IP54 rated.
Specifications
Voltage: 12V

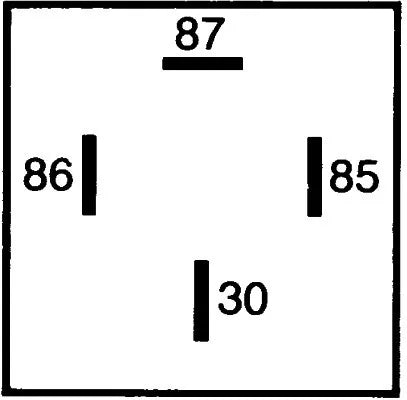

Pins: 4
Contact Type: Normally open (make contact)
Ohmic Load: 40A
Inductive Load: 35A
Capacitive Load: 30A
Temperature Range: Up to 80°C
IP Rating: IP54
Switching Operations: Min. 100,000
Includes: Holder, parallel resistor to coil
Pins: 4
Contact Type: Normally open (make contact)
Ohmic Load: 40A
Inductive Load: 35A
Capacitive Load: 30A
Temperature Range: Up to 80°C
IP Rating: IP54
Switching Operations: Min. 100,000
Includes: Holder, parallel resistor to coil
Features
- Mini relay format — compact size suits tight mounting locations in vehicle wiring
- Supplied with holder — ready to mount without additional hardware
- 100,000 switching operations rated — long service life for automotive switching applications
- Parallel resistor to coil — suppresses voltage spike on relay deactivation
- IP54 rated — protected against dust and water splash
