Overview

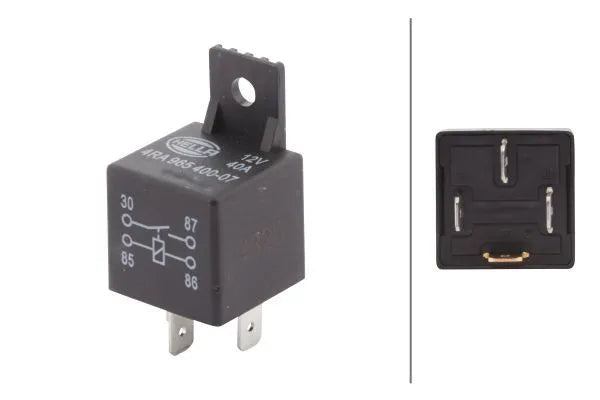

Hella mini relay, 12V, 4-pin normally open with holder. Rated to 30A ohmic load. IP54 rated.
Specifications
Voltage: 12V
Pins: 4
Contact Type: Normally open (make contact)
Rated Current: 40A
Ohmic Load: 30A
Inductive Load: 15A
Capacitive Load: 5A
Temperature Range: -40°C to 125°C
Coil Resistance: 89 Ohm
IP Rating: IP54
Switching Operations: Max. 100,000
Includes: Holder
Pins: 4
Contact Type: Normally open (make contact)
Rated Current: 40A
Ohmic Load: 30A
Inductive Load: 15A
Capacitive Load: 5A
Temperature Range: -40°C to 125°C
Coil Resistance: 89 Ohm
IP Rating: IP54
Switching Operations: Max. 100,000
Includes: Holder
Features
- Mini relay format — compact size suits tight mounting locations in vehicle wiring
- Supplied with holder — ready to mount without additional hardware
- 100,000 switching operations rated — long service life for automotive switching applications
- IP54 rated — protected against dust and water splash
