Overview

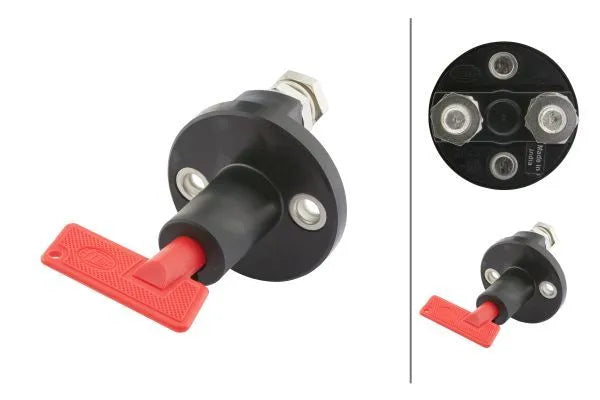

Hella heavy duty battery isolator switch with turn knob actuation and removable key. Rated to 1000A surge at 24V.
Silver-plated screw contacts for battery and ignition current. Key can only be removed in the off position. Continuous load capacity 50A maximum at 80°C ambient with 35mm cable. Replacement key Part No. 9SL 706 729-031.
Specifications
Capacity: 1000A / 10 sec @ 24V
Continuous Load: Max 50A @ 80°C ambient (35mm cable)
Terminals: 2 screw connections, 2 nuts per bolt
Actuation: Turn knob with removable key
Contacts: Silver-plated
IP Rating: IPX4
DIN/ISO: 40050
Continuous Load: Max 50A @ 80°C ambient (35mm cable)
Terminals: 2 screw connections, 2 nuts per bolt
Actuation: Turn knob with removable key
Contacts: Silver-plated
IP Rating: IPX4
DIN/ISO: 40050
Features
- Removable key — key can only be removed in off position, preventing accidental reconnection
- Silver-plated contacts — reliable electrical connection over long service life
- Switches both battery and ignition current — complete isolation in one switch
- Plus or minus line selectable — flexible installation on positive or negative cable
Fitment / Notes
- Replacement key: Part No. 9SL 706 729-031
- IP Rating: IPX4 (key side), IP53 (connection side)
- Note: Continuous load max 50A at 80°C ambient with 35mm cable and ring tongues.
