Overview

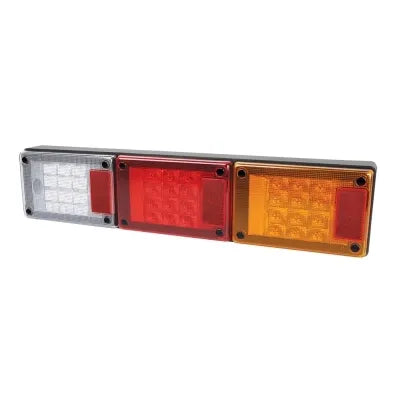

Hella Jumbo-S LED triple module combination lamp incorporating stop, rear position, rear direction indicator, and reversing functions with 23cm² red retro reflectors.
Pre-assembled and wired into housing. Features HCS Technology with ISO 13207-1 compliance. Multivolt for 12 and 24 volt systems. Pre-wired with 2m sheathed multi-core cable.
Specifications
Voltage: Multivolt 12/24V DC
Dimensions: 133 x 597 x 54mm
Mounting Centres: 498mm
Power Consumption: Stop 5W / Rear Position 1W / Rear Direction Indicator 4W / Reversing 4W
Retro Reflector: 23cm² red
Cable Length: 2m sheathed multi-core
Technology: HCS
Dimensions: 133 x 597 x 54mm
Mounting Centres: 498mm
Power Consumption: Stop 5W / Rear Position 1W / Rear Direction Indicator 4W / Reversing 4W
Retro Reflector: 23cm² red
Cable Length: 2m sheathed multi-core
Technology: HCS
Features
- HCS Technology — meets ISO 13207-1 heavy combination lamp standard
- 4-function triple module — stop, rear position, rear direction indicator, and reversing in one unit
- Pre-assembled into housing — fast, simple installation
- 23cm² red retro reflectors — integrated, no separate reflectors required
- Multivolt 12/24V — suits both 12 and 24 volt systems
Fitment / Notes
- Complies: ADR 1/00, ADR 6/00 Cat 2a, ADR 47/00, ADR 49/00, ISO 13207-1 (2431-CS and 2431DTCS only)
- Mounting: As per Part No. 2429-CS
- Note: Reversing lamps are not designed for continuous operation.
