Overview

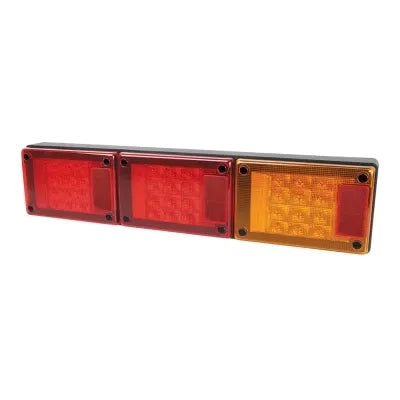

Hella Jumbo-S LED triple module combination lamp incorporating stop, rear position, and rear direction indicator functions with 23cm² red retro reflectors.
Pre-assembled and wired into housing for easy installation. Features HCS Technology with ISO 13207-1 compliance. Multivolt for 12 and 24 volt systems. Pre-wired with 2m sheathed multi-core cable.
Specifications
Voltage: Multivolt 12/24V DC

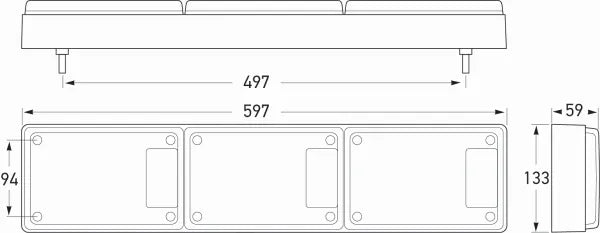

Dimensions: 133 x 597 x 54mm
Mounting Centres: 498mm
Power Consumption: Stop 5W x 2 / Rear Position 1W x 2 / Rear Direction Indicator 4W
Retro Reflector: 23cm² red
Cable Length: 2m sheathed multi-core
Technology: HCS
Dimensions: 133 x 597 x 54mm
Mounting Centres: 498mm
Power Consumption: Stop 5W x 2 / Rear Position 1W x 2 / Rear Direction Indicator 4W
Retro Reflector: 23cm² red
Cable Length: 2m sheathed multi-core
Technology: HCS
Features
- HCS Technology — meets ISO 13207-1 heavy combination stop lamp standard
- Pre-assembled triple module — lamps wired into housing for fast, simple installation
- 23cm² red retro reflectors — integrated, no separate reflectors required
- Multivolt 12/24V — suits both 12 and 24 volt systems
- 598mm wide — suits wide-body truck and trailer rear panels
Fitment / Notes
- Complies: ADR 6/00 Cat 2a, ADR 47/00, ADR 49/00, ISO 13207-1 (2430-CS and 2430DTCS only)
- Mounting: As per Part No. 2429-CS
- Protection: As per Part No. 2429-CS
