Overview

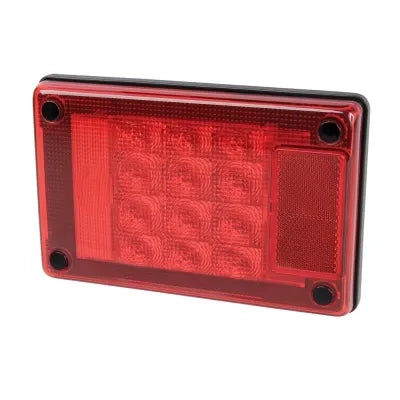

Hella Jumbo-S LED stop and rear position lamp with inbuilt 23cm² red retro reflector. Features Enhanced Definition Technology (EDT) for the stop signal function.
Low profile design allows surface mounting with gasket accessory. Multivolt for 12 and 24 volt systems. Pre-wired with 200mm cable.
Specifications
Voltage: Multivolt 12/24V DC

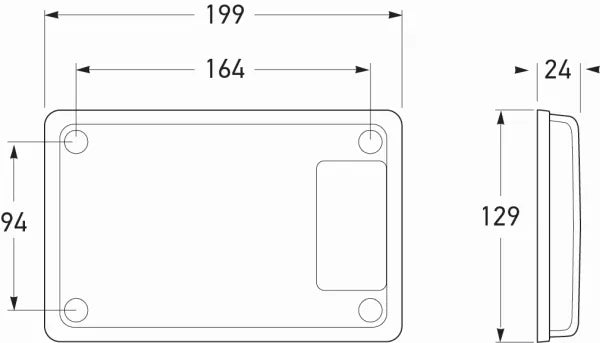

Dimensions: 129 x 199 x 24mm
Mounting Centres: 94 x 164mm
Power Consumption: Stop 5W / Rear Position 1W
Retro Reflector: 23cm² red
Cable Length: 200mm
IP Rating: IP 6K7, IP 6K9K
Dimensions: 129 x 199 x 24mm
Mounting Centres: 94 x 164mm
Power Consumption: Stop 5W / Rear Position 1W
Retro Reflector: 23cm² red
Cable Length: 200mm
IP Rating: IP 6K7, IP 6K9K
Features
- Enhanced Definition Technology (EDT) — improved stop signal visibility and definition
- Inbuilt 23cm² retro reflector — no separate reflector required
- Multivolt 12/24V — suits both 12 and 24 volt systems
- IP 6K9K rated — protected against high-pressure and steam jet cleaning
- Low profile design — suits surface mounting with gasket accessory
- Retrofit to existing Jumbo or Designline lamps
Fitment / Notes
- Complies: ADR 47/00, ADR 49/00
- Gasket accessory: Part No. 9.2361.08
- Mounting: Horizontal or vertical, retrofit to Jumbo or Designline
