Overview

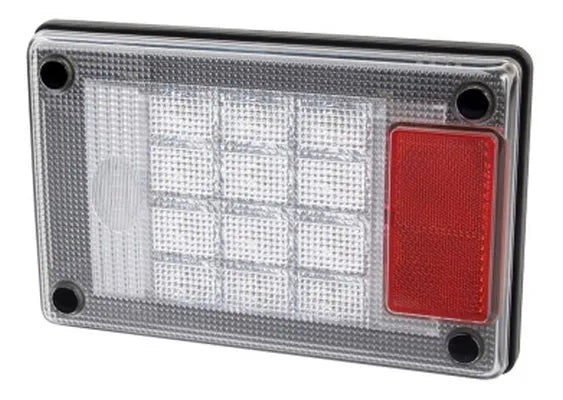

Hella Jumbo-S LED reversing lamp with inbuilt 23cm² red retro reflector. Low profile design allows surface mounting with gasket accessory.
Multivolt for 12 and 24 volt systems. IP 6K7 and IP 6K9K rated. Pre-wired with 200mm cable.
Specifications
Voltage: Multivolt 12/24V DC
Power Consumption: 4W
Retro Reflector: 23cm² red
Mounting: Surface mount (with gasket accessory Part No. 9.2361.08)
Cable Length: 200mm
IP Rating: IP 6K7, IP 6K9K
Power Consumption: 4W
Retro Reflector: 23cm² red
Mounting: Surface mount (with gasket accessory Part No. 9.2361.08)
Cable Length: 200mm
IP Rating: IP 6K7, IP 6K9K
Features
- Multivolt 12/24V — suits both 12 and 24 volt systems
- Inbuilt 23cm² retro reflector — no separate reflector required
- IP 6K9K rated — protected against high-pressure and steam jet cleaning
- Retrofit to existing Jumbo or Designline lamps — direct replacement
- Reverse polarity and transient spike protection
Fitment / Notes
- Complies: ADR 1/00, ADR 47/00
- Mounting: Horizontal or vertical, retrofit to Jumbo or Designline
- Gasket accessory: Part No. 9.2361.08
- Note: Reversing lamps are not designed for continuous operation.
