Overview

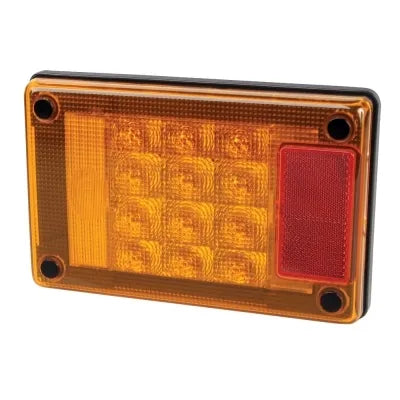

Hella Jumbo-S LED amber rear direction indicator lamp with inbuilt 23cm² red retro reflector. Features HCS Technology with ISO 13207-1 compliance.
Low profile design allows surface mounting with gasket accessory. Multivolt for 12 and 24 volt systems. Pre-wired with 200mm cable.
Specifications
Voltage: Multivolt 12/24V DC
Dimensions: 129 x 199 x 24mm
Mounting Centres: 94 x 164mm
Power Consumption: 4W
Retro Reflector: 23cm² red
Cable Length: 200mm
Technology: HCS
Dimensions: 129 x 199 x 24mm
Mounting Centres: 94 x 164mm
Power Consumption: 4W
Retro Reflector: 23cm² red
Cable Length: 200mm
Technology: HCS
Features
- HCS Technology — meets ISO 13207-1 heavy combination stop lamp standard
- Inbuilt 23cm² retro reflector — no separate reflector required
- Multivolt 12/24V — suits both 12 and 24 volt systems
- Low profile design — suits surface mounting with gasket accessory
- Retrofit to existing Jumbo or Designline lamps
Fitment / Notes
- Complies: ADR 6/00 Cat 2a, ADR 47/00, ISO 13207-1 (2161-CS only)
- Gasket accessory: Part No. 9.2361.08
- Mounting: Horizontal or vertical, retrofit to Jumbo or Designline
