Overview

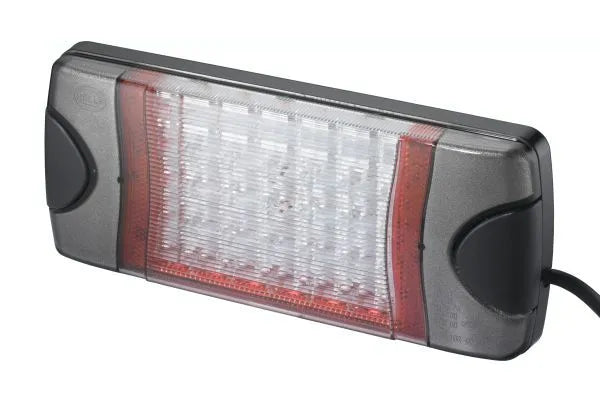

Hella DuraLED Combi-SR combination lamp incorporating stop, rear position, rear direction indicator, and reversing functions with a built-in retro reflector.

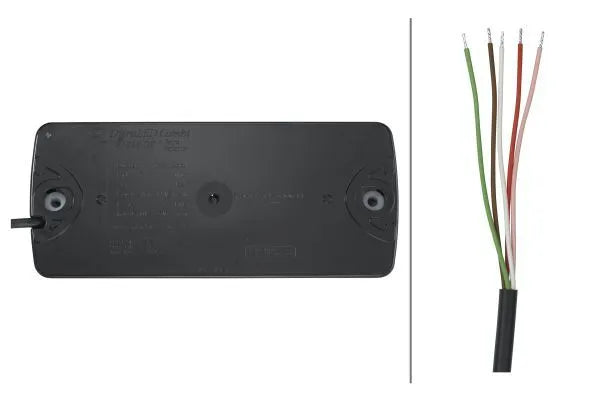

All-in-one design reduces installation time by eliminating the need for a separate reflector. Multivolt for 12 and 24 volt systems. Nylon (PA12) lens. Pre-wired with 2.5m sheathed multi-core cable.
Specifications
Voltage: Multivolt 12/24V DC
Dimensions: 26 x 223 x 27mm
Mounting Centres: 193mm
Power Consumption: Stop 5W / Rear Position 1.5W / Rear Direction Indicator 6W / Reverse 2W / Night light 1.5W (DT version only)
Lens Material: Nylon (PA12)
Mounting: Two hole surface mount with mounting bushes supplied, horizontal only
Cable Length: 2.5m sheathed multi-core (non-DT version)
IP Rating: IP 6K7, IP 6K9K
Dimensions: 26 x 223 x 27mm
Mounting Centres: 193mm
Power Consumption: Stop 5W / Rear Position 1.5W / Rear Direction Indicator 6W / Reverse 2W / Night light 1.5W (DT version only)
Lens Material: Nylon (PA12)
Mounting: Two hole surface mount with mounting bushes supplied, horizontal only
Cable Length: 2.5m sheathed multi-core (non-DT version)
IP Rating: IP 6K7, IP 6K9K
Features
- Built-in retro reflector — saves space and eliminates separate reflector installation
- 4-function combination lamp — stop, rear position, rear direction indicator, and reversing
- IP 6K9K rated — protected against high-pressure and steam jet cleaning
- Multivolt 12/24V — suits both 12 and 24 volt systems
- Reverse polarity and 5000W TVS protection
- Ideal for trucks, utes, and vehicles with limited mounting space
Fitment / Notes
- Complies: ECE R148, ECE R150, ECE R10, ISO 13207-1, ADR 1/00, ADR 6/00 Cat 2a, ADR 47/00, ADR 49/00
- Mounting: Two hole surface mount, horizontal only
- Note: Night light function on DT version only.
