Overview

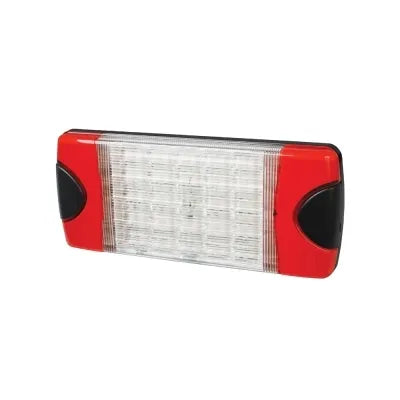

Hella DuraLED Combi-S combination lamp featuring Ultra Wide Visibility Optics and Enhanced Definition Technology (EDT). Suitable for commercial vehicles and boat trailers.
Shockproof and fully sealed to withstand water submersion and high-pressure washing. Multivolt for 12 and 24 volt systems. Pre-wired with 2.5m sheathed multi-core cable.
Specifications
Voltage: Multivolt 12/24V DC

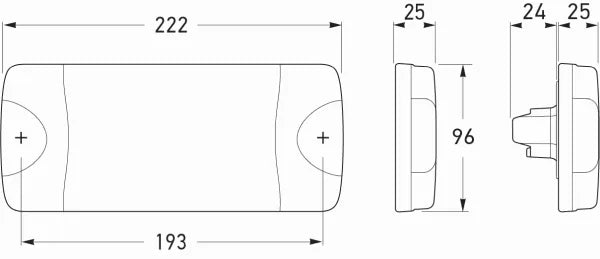

Dimensions: 96 x 222 x 25mm
Mounting Centres: 193mm
Power Consumption: Stop 5W / Rear Position 1W / Rear Direction Indicator 5W
Lens Material: Nylon (PA12)
Mounting: Two hole surface mount with mounting bushes supplied
Cable Length: 2.5m sheathed multi-core
IP Rating: IP 6K7, IP 6K9K
Dimensions: 96 x 222 x 25mm
Mounting Centres: 193mm
Power Consumption: Stop 5W / Rear Position 1W / Rear Direction Indicator 5W
Lens Material: Nylon (PA12)
Mounting: Two hole surface mount with mounting bushes supplied
Cable Length: 2.5m sheathed multi-core
IP Rating: IP 6K7, IP 6K9K
Features
- Ultra Wide Visibility Optics — significantly improved side visibility
- Enhanced Definition Technology (EDT) — improved stop signal definition
- IP 6K9K rated — protected against high-pressure and steam jet cleaning
- Multivolt 12/24V — suits both 12 and 24 volt systems
- Reverse polarity and 5000W TVS protection — prevents damage from wiring faults
- Shockproof and fully sealed — suitable for boat trailer submersion
Fitment / Notes
- Complies: ADR 6/00 Cat 2a, ADR 49/00, ECE R6/01, ECE R7/02, ISO 13207-1 (2378-CS only)
- E-mark: E24 5883
- Mounting: Two hole surface mount, horizontal or vertical
