Overview

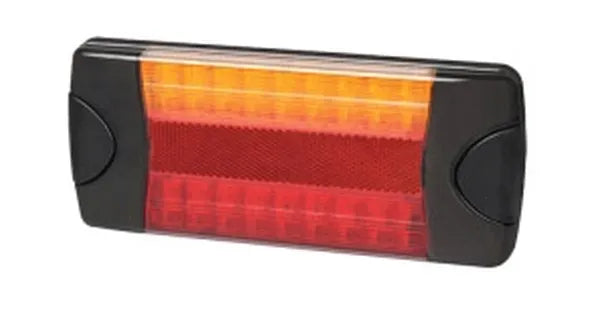

Hella DuraLED Combi-R combination lamp with 34cm² red retro reflector and Enhanced Definition Technology (EDT). Suitable for light commercial vehicles and boat trailers.
Shockproof and fully sealed to withstand water submersion and high-pressure washing. Multivolt for 12 and 24 volt systems. Pre-wired with 2.5m sheathed multi-core cable.
Specifications
Voltage: Multivolt 12/24V DC

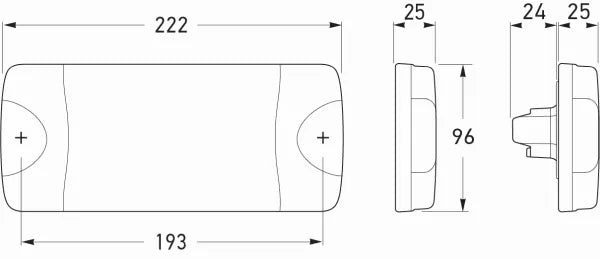

Dimensions: 96 x 222 x 25mm
Mounting Centres: 193mm
Power Consumption: Stop 4W / Rear Position 1W / Rear Direction Indicator 4W
Retro Reflector: 34cm² red
Lens Material: Nylon (PA12)
Mounting: Two hole surface mount with mounting bushes supplied
Cable Length: 2.5m sheathed multi-core
IP Rating: IP 6K7, IP 6K9K
Dimensions: 96 x 222 x 25mm
Mounting Centres: 193mm
Power Consumption: Stop 4W / Rear Position 1W / Rear Direction Indicator 4W
Retro Reflector: 34cm² red
Lens Material: Nylon (PA12)
Mounting: Two hole surface mount with mounting bushes supplied
Cable Length: 2.5m sheathed multi-core
IP Rating: IP 6K7, IP 6K9K
Features
- 34cm² red retro reflector — integrated, larger than standard, no separate reflector required
- Enhanced Definition Technology (EDT) — improved stop signal definition
- IP 6K9K rated — protected against high-pressure and steam jet cleaning
- Multivolt 12/24V — suits both 12 and 24 volt systems
- Reverse polarity and 5000W TVS protection
- Shockproof and fully sealed — suitable for boat trailer submersion
Fitment / Notes
- Complies: ADR 6/00 Cat 2a, ADR 47/00, ADR 49/00, ECE R6/01, ECE R7/02, ECE R3/02
- E-mark: E24 5882
- Mounting: Two hole surface mount, horizontal only
