Overview

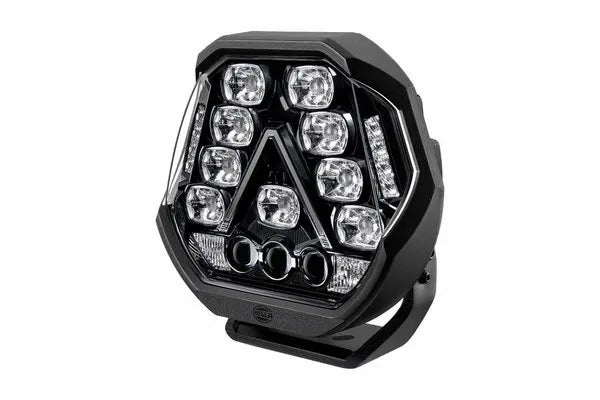

The Hella Antares HP 200 is a premium round LED driving light featuring four light functions: high beam, position light, daytime running light, and a fourth function.
Aluminium housing with crystal clear lens. IP67 and IP69K rated. Supplied as a pair with 500mm cable pre-wired. Screw-on mounting.
Specifications
OEM Reference: 1F0 358 228-871
Voltage: 10–30V DC
Rated Power: 200W
Light Functions: 4 (high beam LED, position light LED, daytime running light LED)
Lens Colour: Crystal clear
Housing: Aluminium, black
Shape: Hexagonal
Mounting: Screw-on
Fitting Position: Frontal sided
Cable Length: 500mm
Dimensions: 225 x 103 x 205mm
Overall Height: 199mm
Fitting Depth: 103mm
Quantity: Pair (2)
IP Rating: IP67, IP69K
Voltage: 10–30V DC
Rated Power: 200W
Light Functions: 4 (high beam LED, position light LED, daytime running light LED)
Lens Colour: Crystal clear
Housing: Aluminium, black
Shape: Hexagonal
Mounting: Screw-on
Fitting Position: Frontal sided
Cable Length: 500mm
Dimensions: 225 x 103 x 205mm
Overall Height: 199mm
Fitting Depth: 103mm
Quantity: Pair (2)
IP Rating: IP67, IP69K
Features
- Aluminium housing — durable construction suited to off-road and heavy duty applications
- IP67 and IP69K rated — protected against temporary water immersion and high-pressure steam jet cleaning
- 4 light functions in one unit — high beam, position, and daytime running light
- 10–30V DC operating range — suits 12V and 24V vehicles
- Crystal clear lens — optic appears clear until illuminated
- Supplied as a pair — both lamps included
Fitment / Notes
- Complies: ECE R10, ECE R148, ECE R149, ECE R87
- Fitting position: Frontal sided
- Note: Screw-on mounting. Supplied with 500mm cable per lamp.
