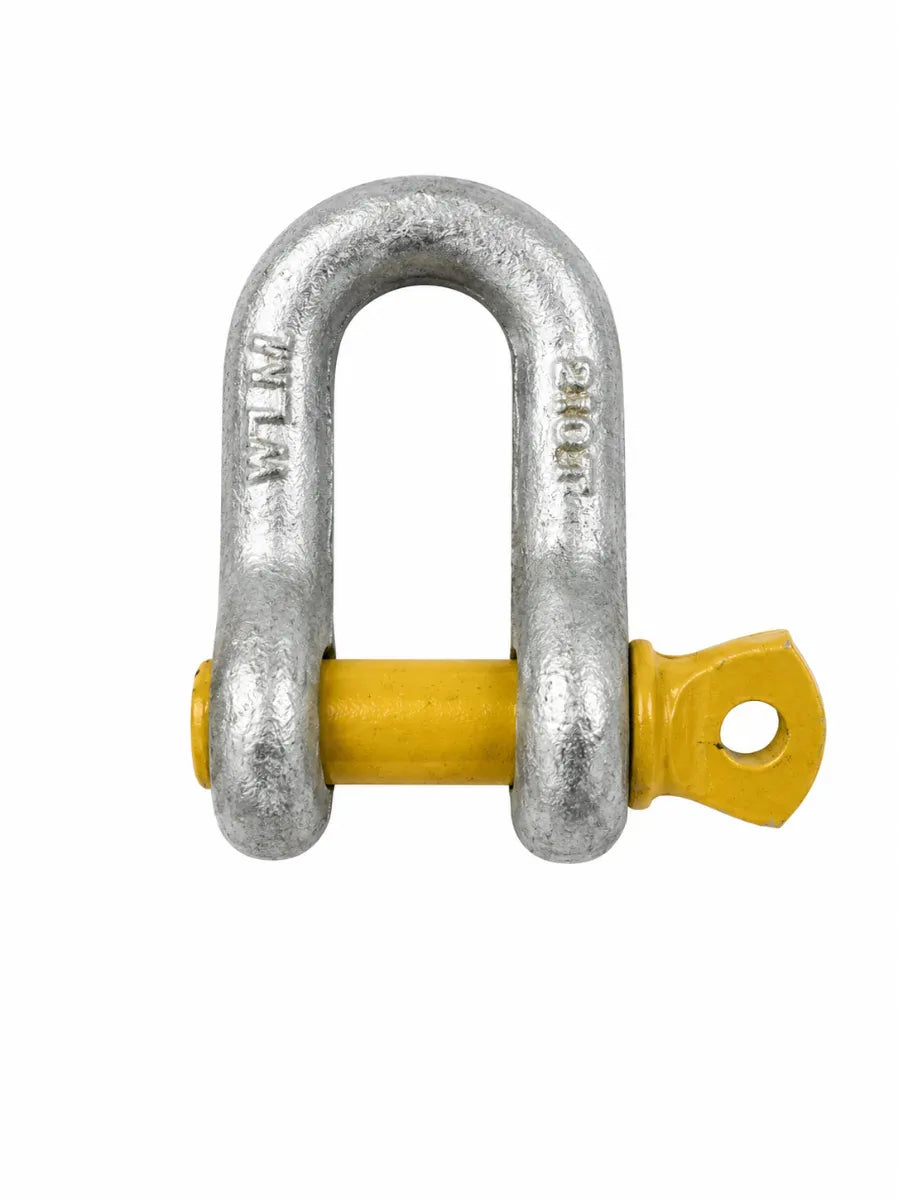

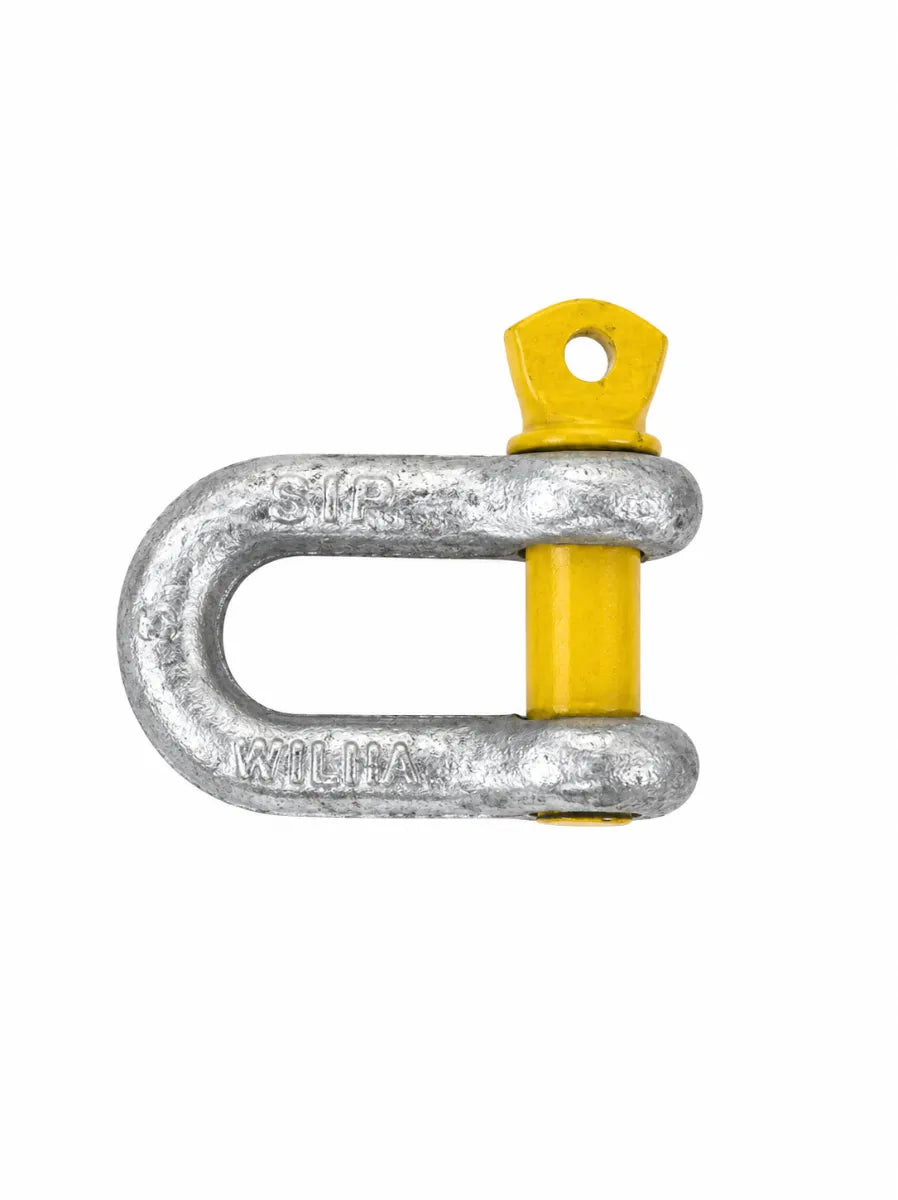

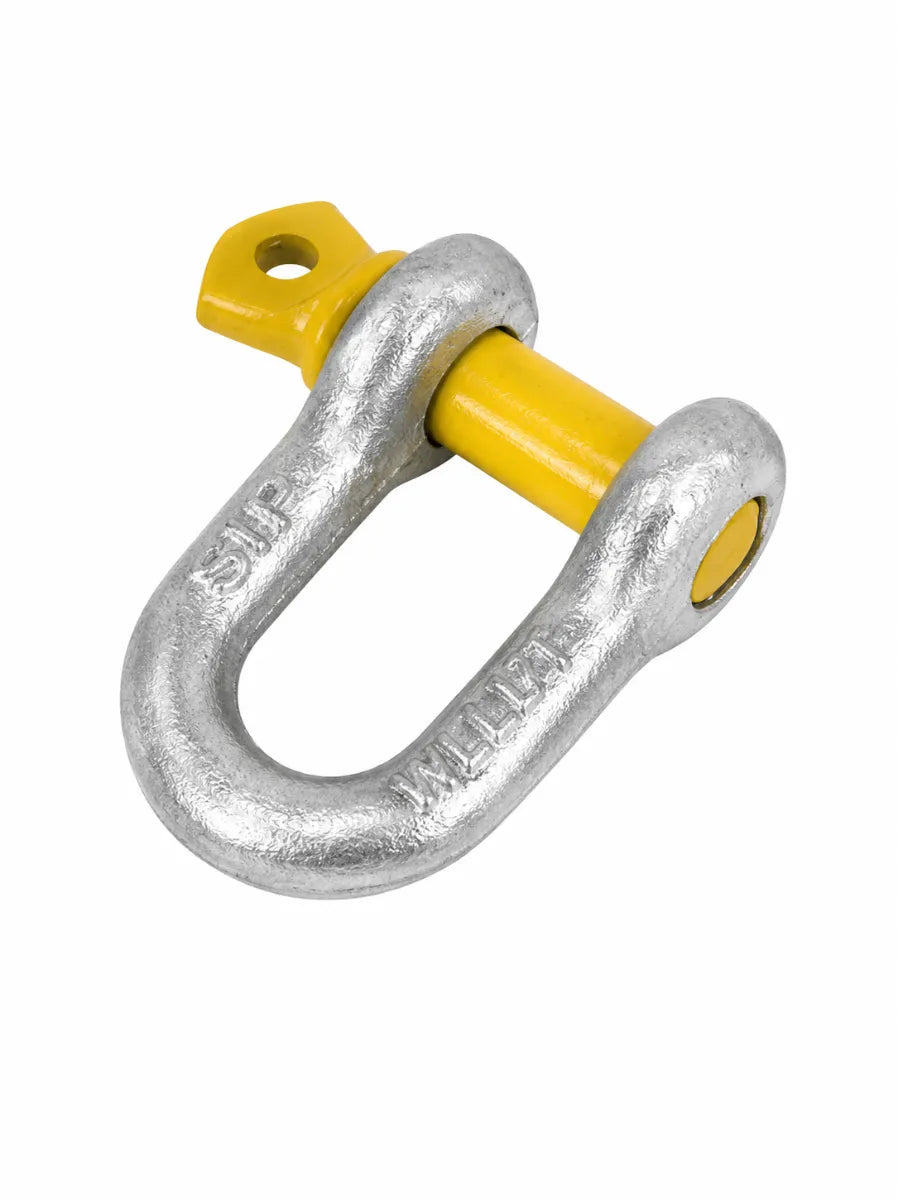

Austlift D-Shackle 3/8" 1-Tonne Grade S Galvanised AS2741

Overview

Austlift Grade S screw pin D-shackle, hot dip galvanised. Conforms to AS2741. Marked with WLL, quality grade, batch number, nominal size, and supplier ID.

Specifications

Size: 3/8"
WLL: 1000kg
Opening: 17mm
Shackle Diameter: 10mm
Pin Bolt: 11mm
Gap: 32mm
Grade: S
Finish: Hot dip galvanised
Standard: AS2741

Features

• Grade S material — higher strength than commercial grade shackles
• Hot dip galvanised — corrosion resistant for marine, agricultural, and outdoor use
• Screw pin — secure closure with positive locking
• AS2741 compliant — marked with WLL, grade, batch number, and size
• Suited to lifting, rigging, chain, and wire rope connections

Fitment / Notes

• Complies: AS2741
